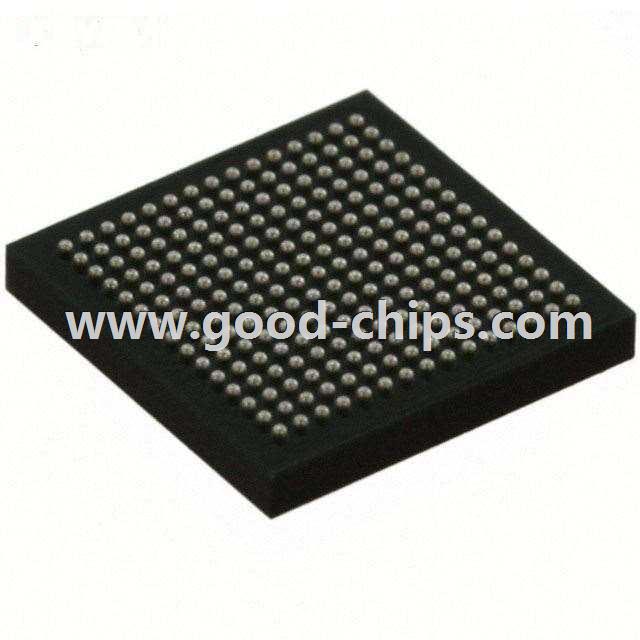

| Manufacturer Part Number: | ICE40HX8K-CM225 |
|---|---|
| Manufacturer: | Lattice Semiconductor Corporation |
| Product Category: | Embedded - FPGAs (Field Programmable Gate Array) |
| Available Quantity: | 9226 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC FPGA 178 I/O 225UCBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ICE40HX8K-CM225 Datasheet |
| Internal Part Number | 898-ICE40HX8K-CM225 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | iCE40 LP/HX Family Datasheet 11/Mar/2013 | |
| PCN Assembly/Origin | Alternate Qualified Test Site 30/Sep/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | iCE40™ HX | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - FPGAs (Field Programmable Gate Array) | |
| Manufacturer | Lattice Semiconductor Corporation | |
| Series | HX | |
| Part Status | Active | |
| Number of LABs/CLBs | 960 | |
| Number of Logic Elements/Cells | 7680 | |
| Total RAM Bits | 131072 | |
| Number of I/O | 178 | |
| Number of Gates | - | |
| Voltage - Supply | 1.14 V ~ 1.26 V | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 100°C (TJ) | |
| Package / Case | 225-VFBGA | |
| Supplier Device Package | 225-UCBGA (7x7) | |
| Standard Package | 260 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ICE40HX8K-CM225 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ICE40HX8K-CM225 is in stock for immediate shipping now. We are the distributor of Lattice Semiconductor Corporation all series components. The condition of ICE40HX8K-CM225 is new and unused, you can buy ICE40HX8K-CM225 Lattice Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ICE40HX8K-CM225.
