| Manufacturer Part Number: | ICE3A5565PBKSA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback Topology 100kHz PG-TO220-6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ICE3A5565PBKSA1 Datasheet |
| Internal Part Number | 898-ICE3A5565PBKSA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Halogen Free Mould Chg Rev 13/Jul/2012 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | Infineon Technologies | |
| Series | CoolMOS™, CoolSET™F3 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 650V | |
| Topology | Flyback | |
| Voltage - Start Up | 15V | |
| Voltage - Supply (Vcc/Vdd) | 8.5 V ~ 21 V | |
| Duty Cycle | 72% | |
| Frequency - Switching | 100kHz | |
| Power (Watts) | 240W | |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | |
| Control Features | Soft Start | |
| Operating Temperature | -25°C ~ 130°C (TJ) | |

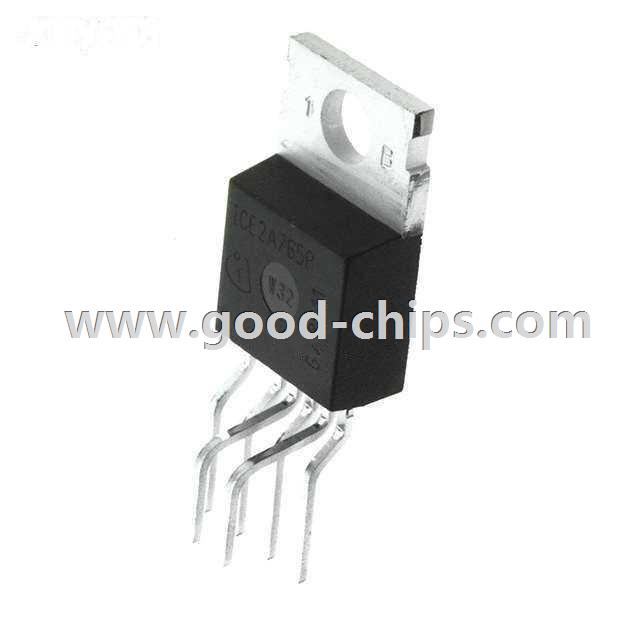

| Package / Case | TO-220-6 Formed Leads | |
| Supplier Device Package | PG-TO220-6 | |
| Mounting Type | Through Hole | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ICE3A5565PBKSA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ICE3A5565PBKSA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of ICE3A5565PBKSA1 is new and unused, you can buy ICE3A5565PBKSA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ICE3A5565PBKSA1.
