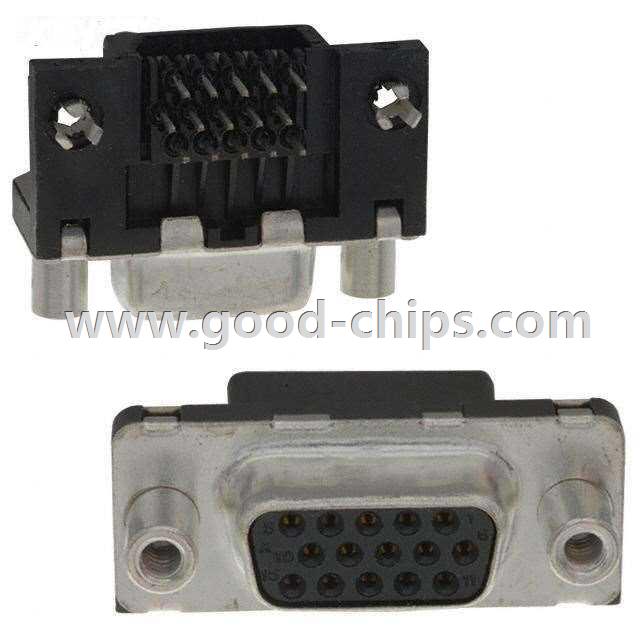

| Manufacturer Part Number: | ICD15S13E6GV00LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 15770 Pieces |
| Unit Price: | Quote by Email |
| Description: | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector, Through Hole, Right Angle Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ICD15S13E6GV00LF Datasheet |
| Internal Part Number | 898-ICD15S13E6GV00LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | D-Sub I/O Connectors | |
| 3D Model | cd15s13e6gv00lf.igs cd15s13e6gv00lf.prt cd15s13e6gv00lf.stp | |
| PCN Design/Specification | Dsub Insulator Raw Material 24/Nov/2009 Dsub Series Plating 05/Jun/2010 | |
| Online Catalog | ICD Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol FCI | |
| Series | ICD | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 1 (DE, E) High Density | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Mating Side, Female Screwlock (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | 300V | |
| Current Rating | 3A | |
| Housing Material | Polyester | |
| Color | Black | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ICD15S13E6GV00LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ICD15S13E6GV00LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of ICD15S13E6GV00LF is new and unused, you can buy ICD15S13E6GV00LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ICD15S13E6GV00LF.
