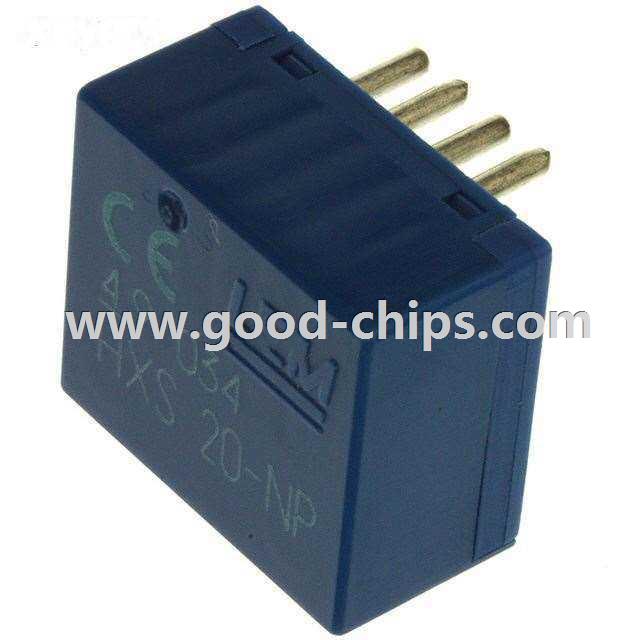

| Manufacturer Part Number: | HXS 20-NP |
|---|---|
| Manufacturer: | LEM USA Inc. |
| Product Category: | Current Transducers |
| Available Quantity: | 9987 Pieces |
| Unit Price: | Quote by Email |
| Description: | Current Sensor 5A, 10A, 20A (Selectable) 1 Channel Hall Effect, Open Loop Bidirectional Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HXS 20-NP Datasheet |
| Internal Part Number | 898-HXS 20-NP | |
| Manufacturer Lead time | 6-8 weeks | |
| 지위 | New & Unused, Original Sealed | |
| Online Catalog | HXS | |
| Category | Sensors, Transducers | |
| Family | Current Transducers | |
| Manufacturer | LEM USA Inc. | |
| Series | HXS | |
| Packaging | Tube | |
| Part Status | Active | |
| For Measuring | AC/DC | |
| Sensor Type | Hall Effect, Open Loop | |
| Current - Sensing | 5A, 10A, 20A (Selectable) | |
| Number of Channels | 1 | |
| Output | Ratiometric, Voltage | |
| Sensitivity | - | |
| Frequency | DC ~ 50kHz | |
| Linearity | ±0.5% | |
| Accuracy | ±1% | |
| Voltage - Supply | 5V | |
| Response Time | 5µs | |
| Current - Supply (Max) | 19mA | |
| Operating Temperature | -40°C ~ 105°C | |
| Polarization | Bidirectional | |
| Mounting Type | Through Hole | |
| Package / Case | Module | |
| Standard Package | 20 | |
| 무게 | 0.001 KG | |
| 신청 | Email for details | |
| Replacement Part | HXS 20-NP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HXS 20-NP is in stock for immediate shipping now. We are the distributor of LEM USA Inc. all series components. The condition of HXS 20-NP is new and unused, you can buy HXS 20-NP LEM USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HXS 20-NP.
