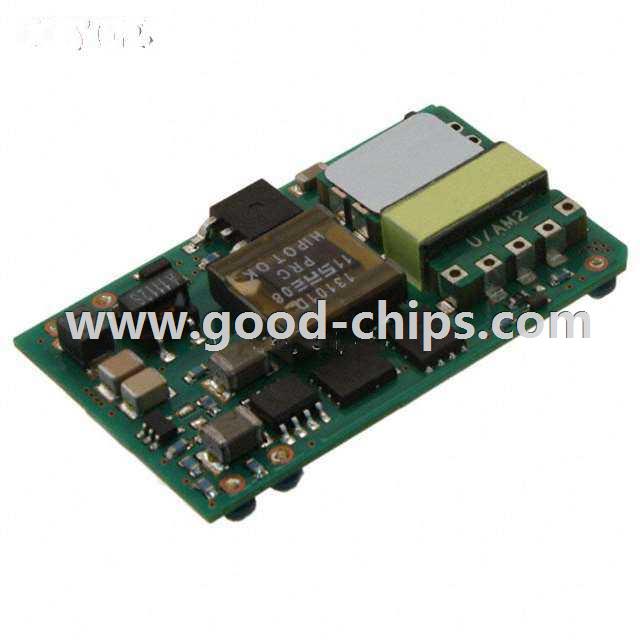

Manufacturer Part Number: | HW006A6A1-SZ |
---|---|
Manufacturer: | GE Critical Power |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 5.0V 6A OUTPUT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HW006A6A1-SZ Datasheet |
Internal Part Number | 898-HW006A6A1-SZ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Manufacturer Product Page | Power Module Wizard™ | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | GE Critical Power | |
Series | HW006 | |
Packaging | Tray | |
Part Status | Obsolete | |
Type | Isolated Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 36V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 5V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 6A | |
Power (Watts) - Manufacture Series | 30W | |
Voltage - Isolation | 2.25kV (2250V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
Mounting Type | Surface Mount | |
Package / Case | 6-SMD Module | |
Size / Dimension | 1.86" L x 1.16" W x 0.34" H (47.2mm x 29.5mm x 8.5mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 91% | |
Power (Watts) - Max | 30W | |
Standard Package | 60 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HW006A6A1-SZ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HW006A6A1-SZ is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of HW006A6A1-SZ is new and unused, you can buy HW006A6A1-SZ GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HW006A6A1-SZ.
