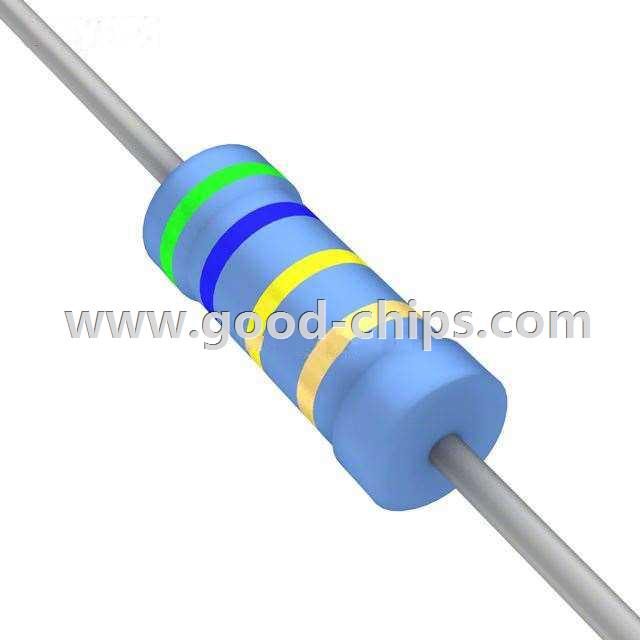

Manufacturer Part Number: | HVR2500005603JR500 |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Through Hole Resistors |
Available Quantity: | 14010 Pieces |
Unit Price: | Quote by Email |
Description: | RES 560K OHM 1/4W 5% AXIAL |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HVR2500005603JR500 Datasheet |
Internal Part Number | 898-HVR2500005603JR500 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | HVR25 and HVR37 Series | |
Category | Resistors | |
Family | Through Hole Resistors | |
Manufacturer | Vishay BC Components | |
Series | HVR25 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 560k | |
Tolerance | ±5% | |
Power (Watts) | 0.25W, 1/4W | |
Composition | Metal Film | |
Features | Flame Retardant Coating, High Voltage, Pulse Withstanding, Safety | |
Temperature Coefficient | ±200ppm/°C | |
Operating Temperature | -55°C ~ 155°C | |
Package / Case | Axial | |
Supplier Device Package | Axial | |
Size / Dimension | 0.098" Dia x 0.256" L (2.50mm x 6.50mm) | |
Height | - | |
Number of Terminations | 2 | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HVR2500005603JR500 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HVR2500005603JR500 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of HVR2500005603JR500 is new and unused, you can buy HVR2500005603JR500 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HVR2500005603JR500.
