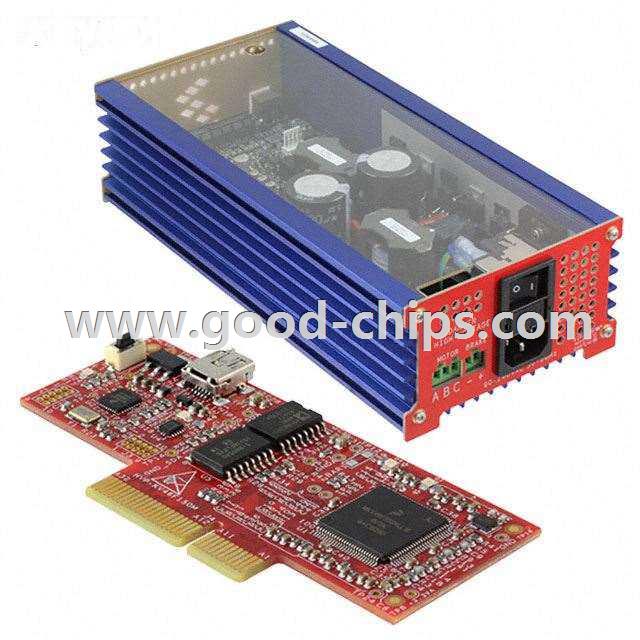

| Manufacturer Part Number: | HVP-MC3PH |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | - Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HVP-MC3PH Datasheet |
| Internal Part Number | 898-HVP-MC3PH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | DigiKey’s 2015 Holiday Gift Guide – Another Geek Moment | |
| Design Resources | Development Tool Selector | |
| Online Catalog | Three-Phase High-Voltage Motor Control Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, MCU, 32-Bit | |
| Utilized IC / Part | - | |
| Primary Attributes | AC Induction (ACIM) Motors, Brushless DC (BLDC) Motors, Permanent Magnet Synchronous (PMSM) Motors | |
| Secondary Attributes | Power Factor Corrected (PFC) | |
| Supplied Contents | 2 Boards, Cables | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HVP-MC3PH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HVP-MC3PH is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of HVP-MC3PH is new and unused, you can buy HVP-MC3PH NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HVP-MC3PH.
