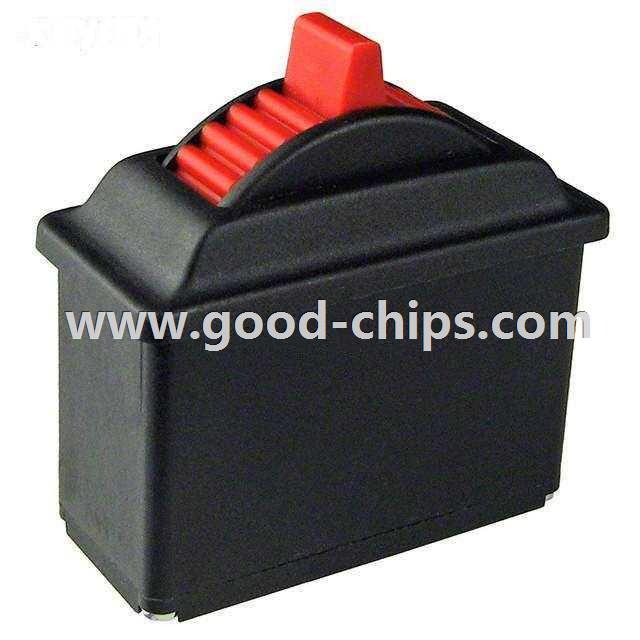

| Manufacturer Part Number: | HTW-00-RED |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Navigation Switches, Joystick |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |
| Description: | Thumbwheel, 1 - Axis Analog (Hall Effect) Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HTW-00-RED Datasheet |
| Internal Part Number | 898-HTW-00-RED | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Joystick Overview | |
| Online Catalog | HFX Series | |
| Category | Switches | |
| Family | Navigation Switches, Joystick | |
| Manufacturer | Apem Inc. | |
| Series | TW | |
| Part Status | Active | |
| Type | Thumbwheel, 1 - Axis | |
| Actuator Type | Thumbwheel | |
| Switch Function | 2-Way Directional | |
| Functions, Extra | - | |
| Output | Analog (Hall Effect) | |
| Voltage - Supply | 5VDC | |
| Current Rating | - | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | - | |
| Contact Material | - | |
| Contact Finish | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Wire Leads | |
| Operating Temperature | -40°C ~ 85°C | |
| Panel Cutout Dimensions | Rectangular - 36.45mm x 16.05mm | |
| Ingress Protection | - | |
| Features | Red Actuator | |
| Mechanical Life | 5,000,000 Cycles | |
| Electrical Life | - | |
| Operating Force | 80gf | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HTW-00-RED | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HTW-00-RED is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of HTW-00-RED is new and unused, you can buy HTW-00-RED Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HTW-00-RED.
