Manufacturer Part Number: | HSP061-8M16 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | TVS - Diodes |
Available Quantity: | 12083 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 3VWM 14VC 16UQFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HSP061-8M16 Datasheet |
Internal Part Number | 898-HSP061-8M16 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | HSP061-8M16 View All Specifications HSP061-8M16 View All Specifications | |
Featured Product | HSP061-4NY8/-8M16 ESD Arrays | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | STMicroelectronics | |
Series | HSP | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Type | Steering (Rail to Rail) | |
Unidirectional Channels | - | |
Bidirectional Channels | 8 | |
Voltage - Reverse Standoff (Typ) | 3V | |
Voltage - Breakdown (Min) | 6V | |
Voltage - Clamping (Max) @ Ipp | 14V (Typ) | |
Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | |
Power - Peak Pulse | - | |
Power Line Protection | Yes | |
Applications | HDMI | |
Capacitance @ Frequency | 0.6pF @ 200MHz ~ 3GHz | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

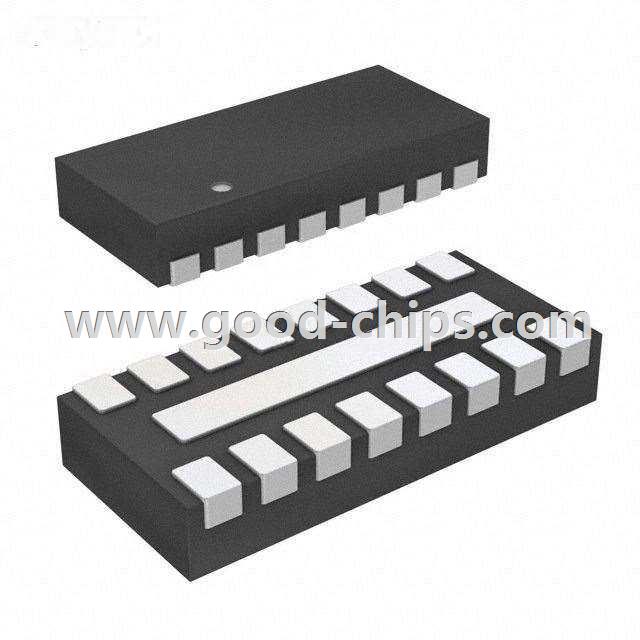

Package / Case | 16-UFDFN Exposed Pad | |
Supplier Device Package | 16-UQFN (3.5x1.5) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HSP061-8M16 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HSP061-8M16 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of HSP061-8M16 is new and unused, you can buy HSP061-8M16 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSP061-8M16.
