| Manufacturer Part Number: | HSP061-4NY8 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | TVS - Diodes |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 3VWM 18VC 8UQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSP061-4NY8 Datasheet |
| Internal Part Number | 898-HSP061-4NY8 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | HSP061-4NY8 View All Specifications HSP061-4NY8 View All Specifications | |
| Mfg Application Notes | HSP061-4NY8 High Speed Line Protection | |
| Featured Product | HSP061-4NY8/-8M16 ESD Arrays | |
| Online Catalog | HSPx Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | STMicroelectronics | |
| Series | HSP | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 4 | |
| Voltage - Reverse Standoff (Typ) | 3V | |
| Voltage - Breakdown (Min) | 6V | |
| Voltage - Clamping (Max) @ Ipp | 18V (Typ) | |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | HDMI | |
| Capacitance @ Frequency | 0.5pF @ 200MHz ~ 3GHz | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

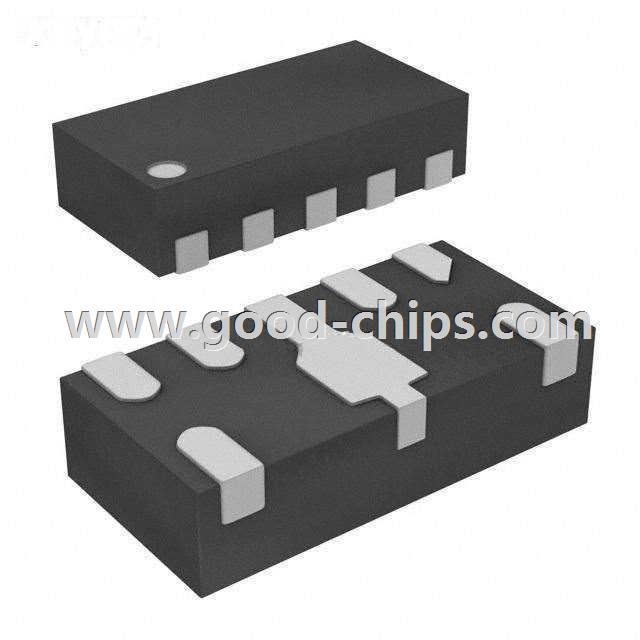

| Package / Case | 8-UFQFN | |
| Supplier Device Package | 8-UQFN (2x1) | |
| Standard Package | 6,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSP061-4NY8 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSP061-4NY8 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of HSP061-4NY8 is new and unused, you can buy HSP061-4NY8 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSP061-4NY8.
