| Manufacturer Part Number: | HSMP-386J-TR2G |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Diodes - RF |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Diode PIN - 4 Pair Parallel 100V 1A 2W 8-QFN (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSMP-386J-TR2G Datasheet |
| Internal Part Number | 898-HSMP-386J-TR2G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | Alternate ESD Lock Reel Supplier 24/Jul/2014 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - RF | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | PIN - 4 Pair Parallel | |
| Voltage - Peak Reverse (Max) | 100V | |
| Current - Max | 1A | |
| Capacitance @ Vr, F | 1.25pF @ 50V, 1MHz | |
| Resistance @ If, F | 770 mOhm @ 50mA, 100MHz | |
| Power Dissipation (Max) | 2W | |

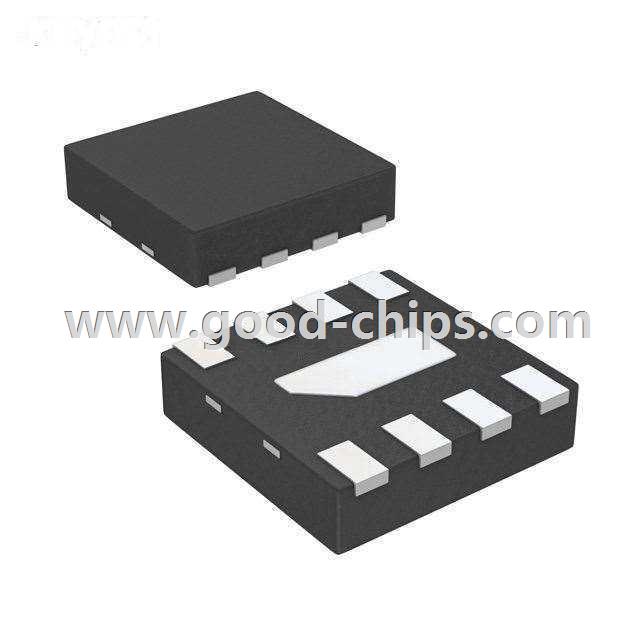

| Package / Case | 8-QFN | |
| Supplier Device Package | 8-QFN (2x2) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSMP-386J-TR2G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSMP-386J-TR2G is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HSMP-386J-TR2G is new and unused, you can buy HSMP-386J-TR2G Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSMP-386J-TR2G.
