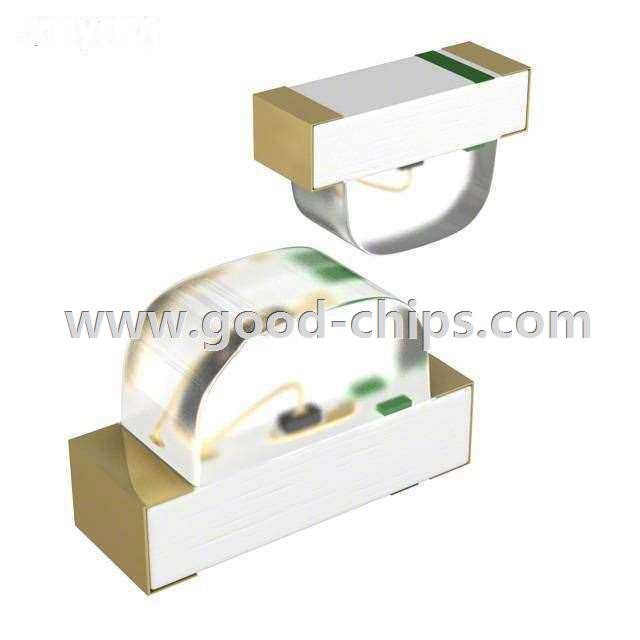

| Manufacturer Part Number: | HSMM-C120 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 14493 Pieces |
| Unit Price: | Quote by Email |
| Description: | Green 525nm LED Indication - Discrete 3.4V 2-SMD, No Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSMM-C120 Datasheet |
| Internal Part Number | 898-HSMM-C120 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | HSMy-C120 19/Jun/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Right Angle Rectangle with Domed Top 0603 Package Chip LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Color | Green | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 120mcd | |
| Lens Style/Size | Rectangle with Domed Top, 1.20mm x 0.60mm | |
| Voltage - Forward (Vf) (Typ) | 3.4V | |
| Current - Test | 20mA | |
| Viewing Angle | 155° | |
| Mounting Type | Surface Mount, Right Angle | |
| Wavelength - Dominant | 525nm | |
| Wavelength - Peak | 523nm | |
| Features | - | |
| Package / Case | 2-SMD, No Lead | |
| Supplier Device Package | Chip LED | |
| Size / Dimension | 1.60mm L x 1.00mm W | |
| Height (Max) | 0.60mm | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSMM-C120 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSMM-C120 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HSMM-C120 is new and unused, you can buy HSMM-C120 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSMM-C120.
