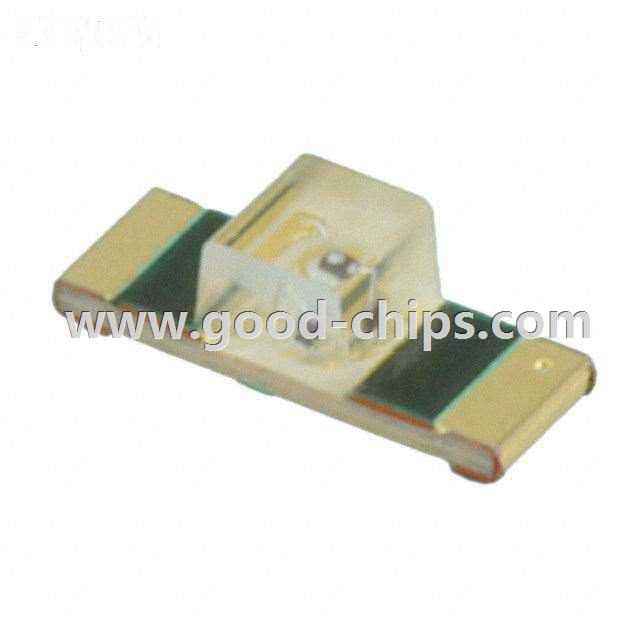

Manufacturer Part Number: | HSMH-C265 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | LED Indication - Discrete |
Available Quantity: | 30957 Pieces |
Unit Price: | Quote by Email |
Description: | Red 639nm LED Indication - Discrete 1.8V 1305 (3412 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HSMH-C265 Datasheet |
Internal Part Number | 898-HSMH-C265 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Assembly Site Transfer 07/Nov/2014 | |
Online Catalog | Reverse Mount Rectangle with Flat Top 1305 Package ChipLEDs | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Color | Red | |
Lens Color | Colorless | |
Lens Transparency | Clear | |
Millicandela Rating | 17mcd | |
Lens Style/Size | Rectangle with Flat Top, 1.20mm x 1.25mm | |
Voltage - Forward (Vf) (Typ) | 1.8V | |
Current - Test | 20mA | |
Viewing Angle | 170° | |
Mounting Type | Surface Mount, Bottom Entry | |
Wavelength - Dominant | 639nm | |
Wavelength - Peak | 660nm | |
Features | - | |
Package / Case | 1305 (3412 Metric) | |
Supplier Device Package | Chip LED | |
Size / Dimension | 3.40mm L x 1.25mm W | |
Height (Max) | 1.10mm | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HSMH-C265 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HSMH-C265 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HSMH-C265 is new and unused, you can buy HSMH-C265 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSMH-C265.
