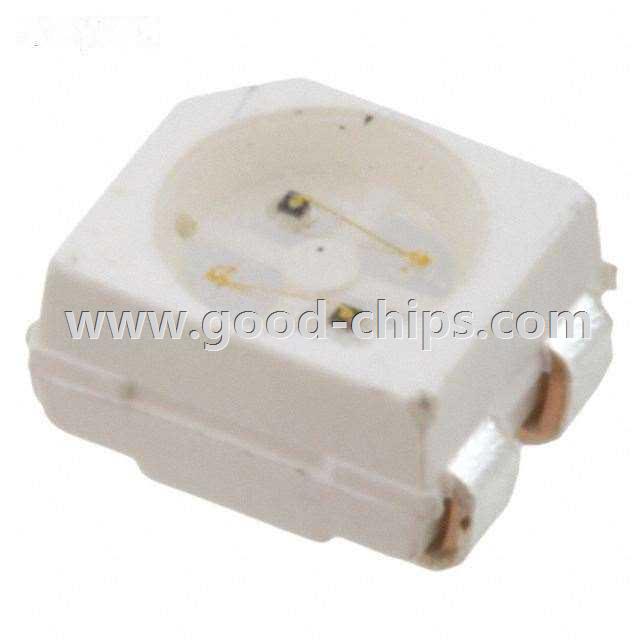

| Manufacturer Part Number: | HSMF-A222-A00J1 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Amber, Red 590nm Amber, 626nm Red LED Indication - Discrete 1.9V Amber, 1.9V Red 4-PLCC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSMF-A222-A00J1 Datasheet |
| Internal Part Number | 898-HSMF-A222-A00J1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | PLCC LED Alternate Assembly Site 30/Jul/2014 | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Amber, Red | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 80mcd Amber, 80mcd Red | |
| Lens Style/Size | Round with Flat Top, 2.20mm | |
| Voltage - Forward (Vf) (Typ) | 1.9V Amber, 1.9V Red | |
| Current - Test | 20mA Amber, 20mA Red | |
| Viewing Angle | 120° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 590nm Amber, 626nm Red | |
| Wavelength - Peak | 592nm Amber, 635nm Red | |
| Features | - | |
| Package / Case | 4-PLCC | |
| Supplier Device Package | 4-PLCC | |
| Size / Dimension | 3.20mm L x 2.80mm W | |
| Height (Max) | 2.10mm | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSMF-A222-A00J1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSMF-A222-A00J1 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HSMF-A222-A00J1 is new and unused, you can buy HSMF-A222-A00J1 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSMF-A222-A00J1.
