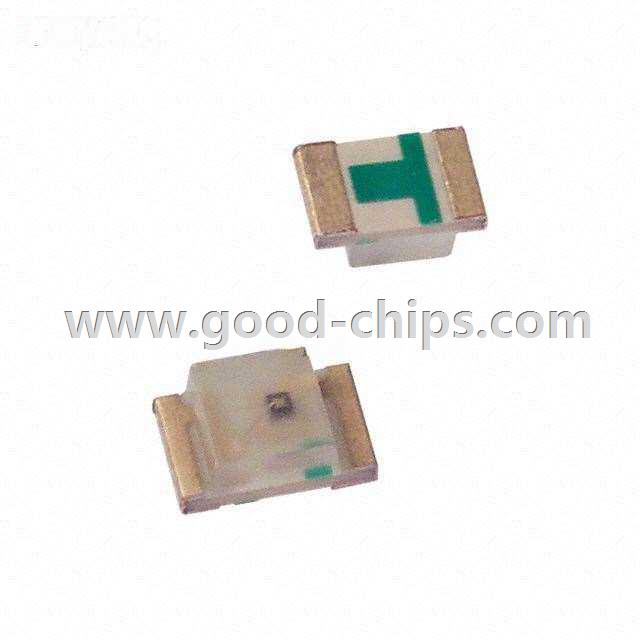

| Manufacturer Part Number: | HSMC-S670 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 626nm LED Indication - Discrete 1.9V 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSMC-S670 Datasheet |
| Internal Part Number | 898-HSMC-S670 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 03/Jan/2008 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Broadcom Limited | |
| Series | SunPower | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Color | Red | |
| Lens Color | White | |
| Lens Transparency | Diffused | |
| Millicandela Rating | 50mcd | |
| Lens Style/Size | Rectangle with Flat Top, 1.30mm x 1.25mm | |
| Voltage - Forward (Vf) (Typ) | 1.9V | |
| Current - Test | 20mA | |
| Viewing Angle | 165° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 626nm | |
| Wavelength - Peak | 630nm | |
| Features | - | |
| Package / Case | 0805 (2012 Metric) | |
| Supplier Device Package | * | |
| Size / Dimension | 2.00mm L x 1.25mm W | |
| Height (Max) | 0.80mm | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSMC-S670 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSMC-S670 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HSMC-S670 is new and unused, you can buy HSMC-S670 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSMC-S670.
