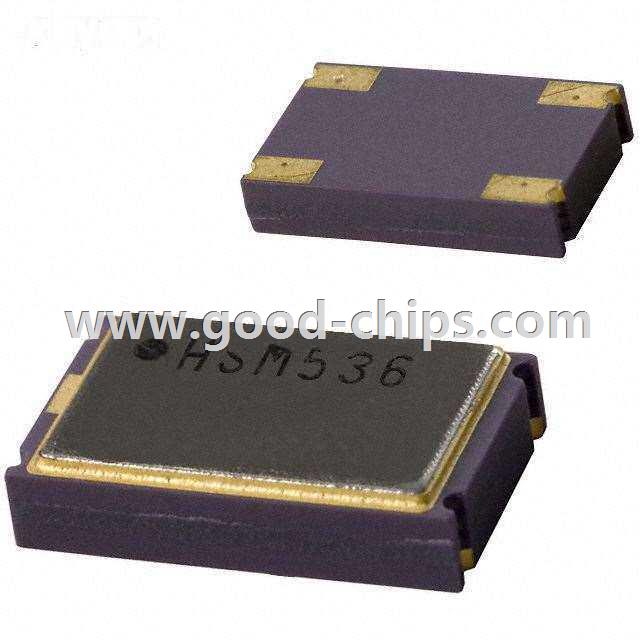

| Manufacturer Part Number: | HSM536-18.4320 |
|---|---|
| Manufacturer: | Connor-Winfield |
| Product Category: | Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 18.432MHz HCMOS XO (Standard) Oscillator Surface Mount 5V 20mA Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSM536-18.4320 Datasheet |
| Internal Part Number | 898-HSM536-18.4320 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | Connor-Winfield | |
| Series | HSM536 | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Frequency | 18.432MHz | |
| Function | Enable/Disable | |
| Output | HCMOS | |
| Voltage - Supply | 5V | |
| Frequency Stability | ±100ppm | |
| Operating Temperature | 0°C ~ 70°C | |
| Current - Supply (Max) | 20mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.435" L x 0.250" W (11.05mm x 6.35mm) | |
| Height | 0.105" (2.67mm) | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSM536-18.4320 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSM536-18.4320 is in stock for immediate shipping now. We are the distributor of Connor-Winfield all series components. The condition of HSM536-18.4320 is new and unused, you can buy HSM536-18.4320 Connor-Winfield with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSM536-18.4320.
