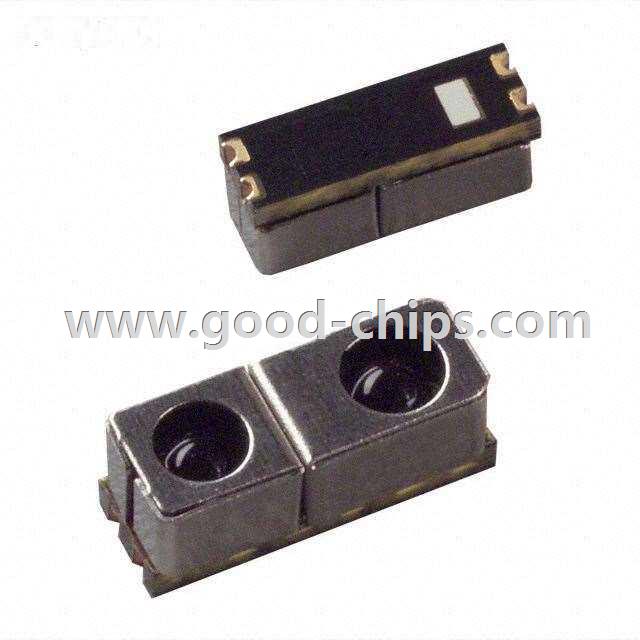

| Manufacturer Part Number: | HSDL-9100-021 |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | Optical Sensors - Reflective - Analog Output |
| Available Quantity: | 16510 Pieces |
| Unit Price: | Quote by Email |
| Description: | PROXIMITY SENSOR REFL MINI SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSDL-9100-021 Datasheet |
| Internal Part Number | 898-HSDL-9100-021 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Laser Marking Removal 08/Jun/2015 | |
| Online Catalog | HSDL-9100 | |
| Category | Sensors, Transducers | |
| Family | Optical Sensors - Reflective - Analog Output | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Sensing Distance | 0.197" (5mm) | |
| Sensing Method | Reflective | |
| Voltage - Collector Emitter Breakdown (Max) | - | |
| Current - Collector (Ic) (Max) | 100mA | |
| Current - DC Forward (If) (Max) | 100mA | |
| Output Type | Photodiode | |
| Response Time | 6µs, 6µs | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSDL-9100-021 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSDL-9100-021 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of HSDL-9100-021 is new and unused, you can buy HSDL-9100-021 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSDL-9100-021.
