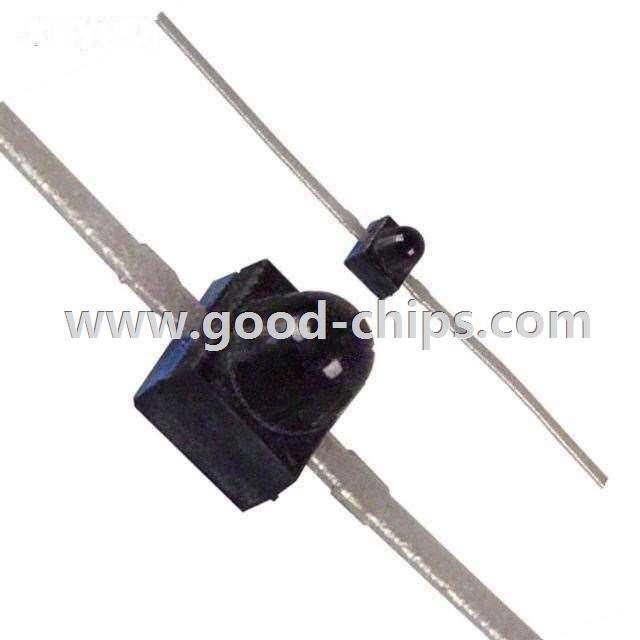

| Manufacturer Part Number: | HSDL-5420 |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | Optical Sensors - Photodiodes |
| Available Quantity: | 11341 Pieces |
| Unit Price: | Quote by Email |
| Description: | Photodiode 875nm 7.5ns 56° Axial, Flat Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HSDL-5420 Datasheet |
| Internal Part Number | 898-HSDL-5420 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | HSDL-54xx IR Detector Series | |
| Category | Sensors, Transducers | |
| Family | Optical Sensors - Photodiodes | |
| Manufacturer | Lite-On Inc. | |
| Series | HSDL-5400 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Wavelength | 875nm | |
| Color - Enhanced | - | |
| Spectral Range | 770nm ~ 1000nm | |
| Diode Type | PIN | |
| Responsivity @ nm | - | |
| Response Time | 7.5ns | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Dark (Typ) | 1nA | |
| Active Area | 0.15mm² | |
| Viewing Angle | 56° | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | Axial, Flat Leads | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HSDL-5420 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HSDL-5420 is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of HSDL-5420 is new and unused, you can buy HSDL-5420 Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HSDL-5420.
