| Manufacturer Part Number: | HS271DR-D2425 |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Solid State Relays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

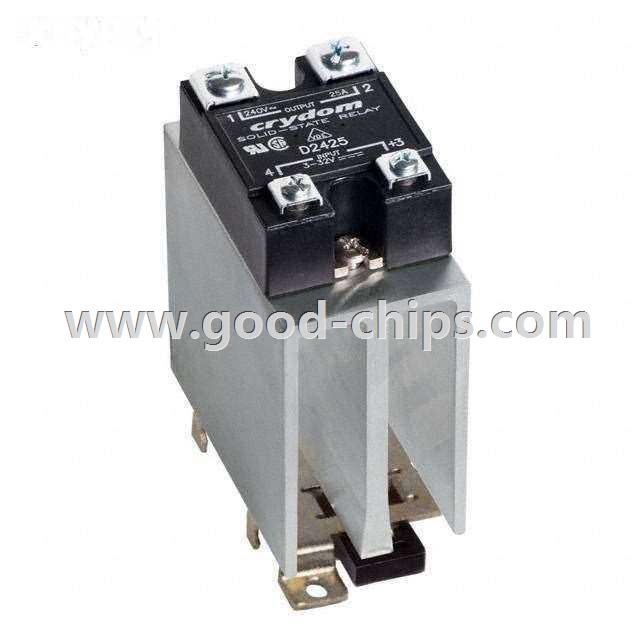

| Description: | Solid State Relay SPST-NO (1 Form A) Hockey Puck with Heat Sink |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HS271DR-D2425 Datasheet |
| Internal Part Number | 898-HS271DR-D2425 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Crydom Co. | |
| Series | HS | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Circuit | SPST-NO (1 Form A) | |
| Output Type | AC, Zero Cross | |
| On-State Resistance (Max) | - | |
| Load Current | 25A | |
| Voltage - Input | 3 ~ 32VDC | |
| Voltage - Load | 24 ~ 280 V | |
| Mounting Type | DIN Rail | |
| Termination Style | Screw Terminal | |
| Package / Case | Hockey Puck with Heat Sink | |
| Supplier Device Package | - | |
| Relay Type | Relay | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HS271DR-D2425 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HS271DR-D2425 is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of HS271DR-D2425 is new and unused, you can buy HS271DR-D2425 Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HS271DR-D2425.
