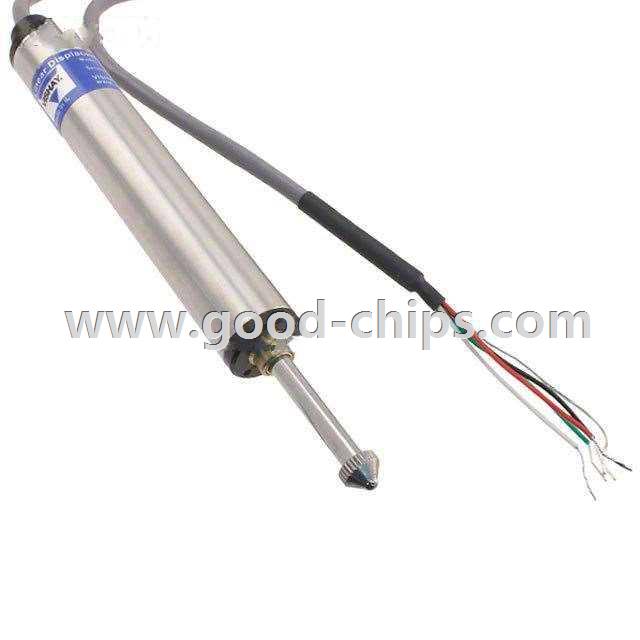

| Manufacturer Part Number: | HS25 |
|---|---|
| Manufacturer: | Micro-Measurements (Division of Vishay Precision Group) |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | Resistive Sensor Linear Position Round Shaft Wire Leads |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HS25 Datasheet |
| Internal Part Number | 898-HS25 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | HS Series | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | Micro-Measurements (Division of Vishay Precision Group) | |
| Series | HS | |
| Part Status | Active | |
| For Measuring | Linear Position | |
| Technology | Resistive | |
| Rotation Angle - Electrical, Mechanical | - | |
| Linear Range | 0 ~ 25.40mm (0 ~ 1.00") | |
| Output | Resistive | |
| Output Signal | - | |
| Actuator Type | Round Shaft | |
| Linearity | ±0.35% | |
| Resistance (Ohms) | - | |
| Resistance Tolerance | - | |
| Voltage - Supply | 2 V ~ 10 V | |
| Mounting Type | Custom | |
| Termination Style | Wire Leads | |
| Operating Temperature | -10°C ~ 60°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HS25 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HS25 is in stock for immediate shipping now. We are the distributor of Micro-Measurements (Division of Vishay Precision Group) all series components. The condition of HS25 is new and unused, you can buy HS25 Micro-Measurements (Division of Vishay Precision Group) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HS25.
