Manufacturer Part Number: | HS243100 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Schottky 100V 240A Chassis Mount HALF-PAK |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HS243100 Datasheet |
Internal Part Number | 898-HS243100 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 30/Oct/2014 | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 100V | |
Current - Average Rectified (Io) | 240A | |
Voltage - Forward (Vf) (Max) @ If | 860mV @ 240A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 8mA @ 100V | |
Capacitance @ Vr, F | 6400pF @ 5V, 1MHz | |
Mounting Type | Chassis Mount | |

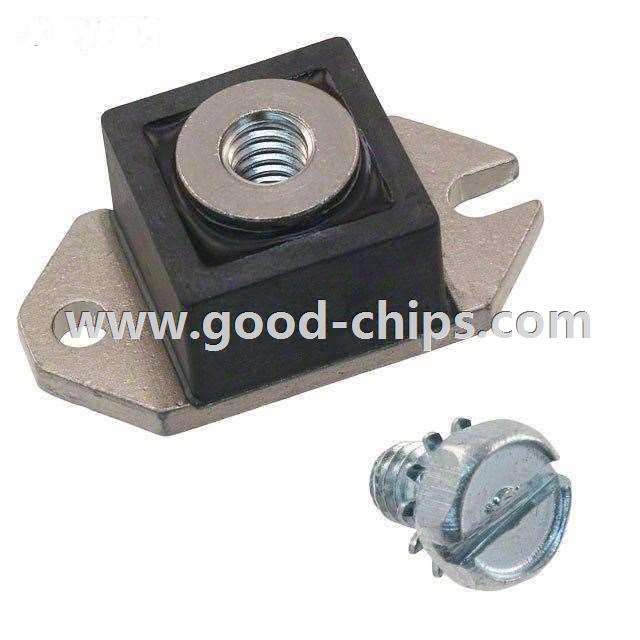

Package / Case | HALF-PAK | |
Supplier Device Package | HALF-PAK | |
Operating Temperature - Junction | * | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HS243100 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HS243100 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of HS243100 is new and unused, you can buy HS243100 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HS243100.
