| Manufacturer Part Number: | HS18140 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9029 Pieces |
| Unit Price: | Quote by Email |

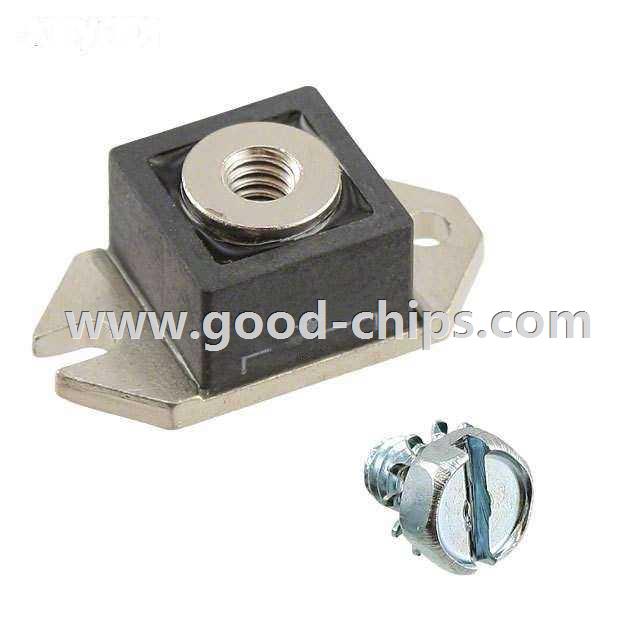

| Description: | DIODE MODULE 40V 180A HALF-PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HS18140 Datasheet |
| Internal Part Number | 898-HS18140 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Schottky Rectifier | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Average Rectified (Io) | 180A | |
| Voltage - Forward (Vf) (Max) @ If | 700mV @ 180A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 4mA @ 40V | |
| Capacitance @ Vr, F | 7500pF @ 5V, 1MHz | |
| Mounting Type | Chassis Mount | |
| Package / Case | HALF-PAK | |
| Supplier Device Package | HALF-PAK | |
| Operating Temperature - Junction | * | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HS18140 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HS18140 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of HS18140 is new and unused, you can buy HS18140 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HS18140.
