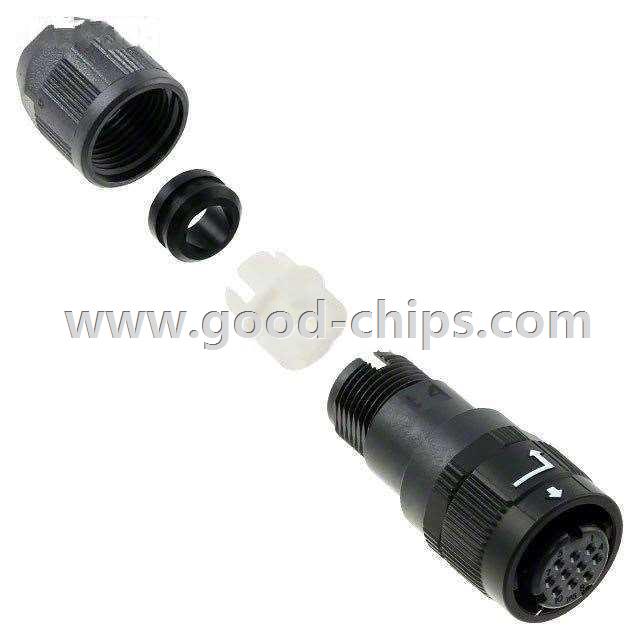

| Manufacturer Part Number: | HR34B-12WPD-10S |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Circular Connectors |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HR34B-12WPD-10S Datasheet |
| Internal Part Number | 898-HR34B-12WPD-10S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Waterproof Power Connectors - Hirose | |
| Online Catalog | HR34B Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | HR34B | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Plug, Female Sockets | |
| Number of Positions | 10 | |
| Shell Size - Insert | 12 | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder Cup | |
| Fastening Type | Bayonet Lock | |
| Orientation | N (Normal) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Shell Material, Finish | Aluminum, Polyamide Resin and Zinc, Black Chromate Plated | |
| Contact Finish | Gold | |
| Features | - | |
| Contact Finish Thickness | - | |
| Current Rating | 3A | |
| Voltage - Rated | 200VAC, 250VDC | |
| Operating Temperature | -25°C ~ 125°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HR34B-12WPD-10S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HR34B-12WPD-10S is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HR34B-12WPD-10S is new and unused, you can buy HR34B-12WPD-10S Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HR34B-12WPD-10S.
