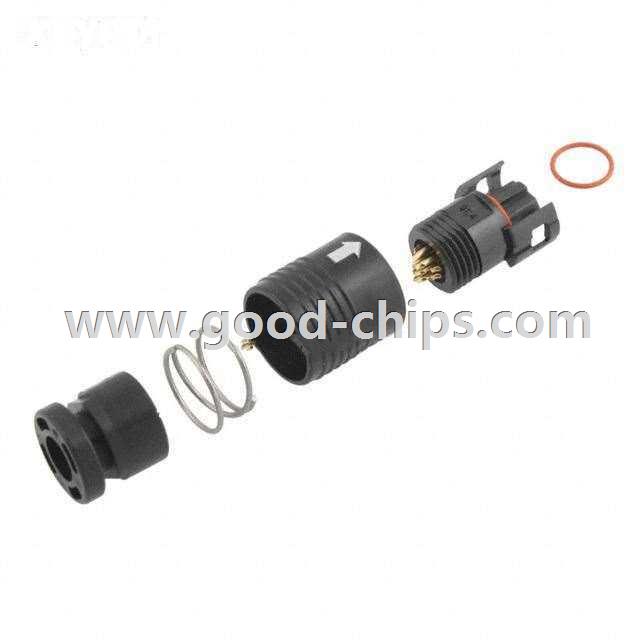

| Manufacturer Part Number: | HR30-7PB-12S |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Circular Connectors |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |
| Description: | 12 Position Circular Connector Plug, Female Sockets Solder Cup Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HR30-7PB-12S Datasheet |
| Internal Part Number | 898-HR30-7PB-12S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | HR30 Circular Connectors Waterproof Connector | |
| Video File | Waterproof Power Connectors - Hirose | |
| Featured Product | HR30 Series Overmolded Connectors | |
| Online Catalog | HR30 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | HR30 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Plug, Female Sockets | |
| Number of Positions | 12 | |
| Shell Size - Insert | 7 | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder Cup | |
| Fastening Type | Push-Pull | |
| Orientation | Keyed | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Shell Material, Finish | Polyphenylene Sulfide (PPS) | |
| Contact Finish | Gold | |
| Features | Strain Relief | |
| Contact Finish Thickness | - | |
| Current Rating | 2A | |
| Voltage - Rated | 30VAC, 42VDC | |
| Operating Temperature | -25°C ~ 85°C | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HR30-7PB-12S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HR30-7PB-12S is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HR30-7PB-12S is new and unused, you can buy HR30-7PB-12S Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HR30-7PB-12S.
