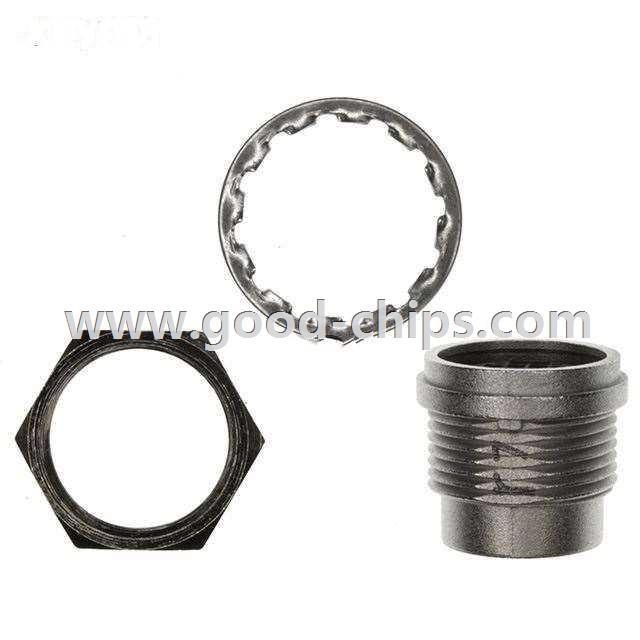

| Manufacturer Part Number: | HR25A-9R-16SC |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Circular Connectors - Housings |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | 16 Position Circular Connector Receptacle for Female Contacts Panel Mount, Bulkhead - Rear Side Nut |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HR25A-9R-16SC Datasheet |
| Internal Part Number | 898-HR25A-9R-16SC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | HR25A Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Housings | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | HR25A | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle for Female Contacts | |
| Number of Positions | 16 | |
| Shell Size - Insert | 9 | |
| Shell Size, MIL | - | |
| Contact Type | Crimp | |
| Contact Size | - | |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | |
| Fastening Type | Push-Pull | |
| Orientation | - | |
| Shell Material, Finish | Zinc, Nickel Plated | |
| Ingress Protection | - | |
| Features | - | |
| Note | Contacts Not Provided | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HR25A-9R-16SC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HR25A-9R-16SC is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HR25A-9R-16SC is new and unused, you can buy HR25A-9R-16SC Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HR25A-9R-16SC.
