| Manufacturer Part Number: | HR25-9TP-20S |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Circular Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

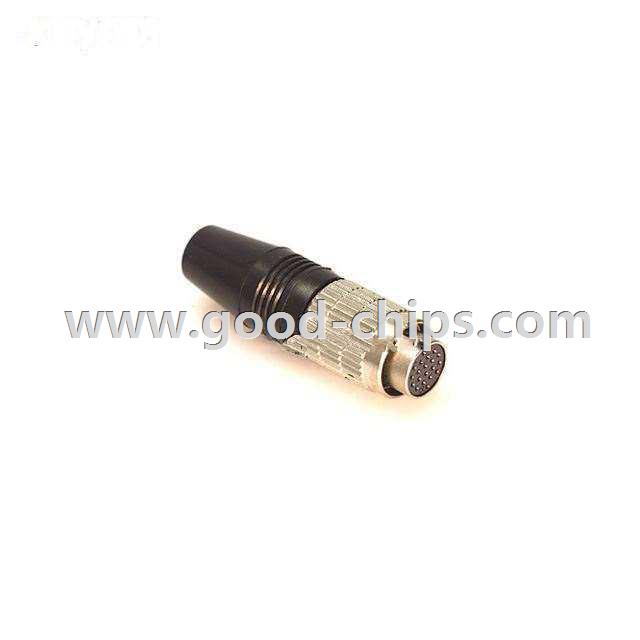

| Description: | 20 Position Circular Connector Plug, Female Sockets Solder Gold |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HR25-9TP-20S Datasheet |
| Internal Part Number | 898-HR25-9TP-20S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | HR25 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Connector Type | Plug, Female Sockets | |
| Number of Positions | 20 | |
| Shell Size - Insert | 9 | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder | |
| Fastening Type | Threaded | |
| Orientation | - | |
| Ingress Protection | - | |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | |
| Contact Finish | Gold | |
| Features | Cable Clamp | |
| Contact Finish Thickness | - | |
| Current Rating | 1A | |
| Voltage - Rated | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HR25-9TP-20S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HR25-9TP-20S is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HR25-9TP-20S is new and unused, you can buy HR25-9TP-20S Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HR25-9TP-20S.
