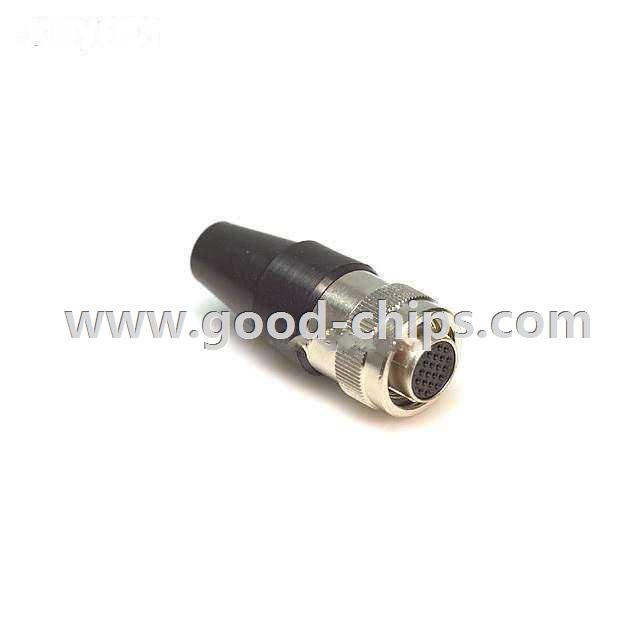

Manufacturer Part Number: | HR22-12TPD-20S |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Circular Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 20 Position Circular Connector Plug, Female Sockets Solder Cup Silver |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HR22-12TPD-20S Datasheet |
Internal Part Number | 898-HR22-12TPD-20S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | Hirose Electric Co Ltd | |
Series | HR22 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Connector Type | Plug, Female Sockets | |
Number of Positions | 20 | |
Shell Size - Insert | 12 | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Solder Cup | |
Fastening Type | Threaded | |
Orientation | - | |
Ingress Protection | - | |
Shell Material, Finish | Brass and Zinc, Nickel Plated | |
Contact Finish | Silver | |
Features | - | |
Contact Finish Thickness | - | |
Current Rating | 2A | |
Voltage - Rated | 100VAC | |
Operating Temperature | -25°C ~ 85°C | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HR22-12TPD-20S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HR22-12TPD-20S is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HR22-12TPD-20S is new and unused, you can buy HR22-12TPD-20S Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HR22-12TPD-20S.
