| Manufacturer Part Number: | HR22-12TJD-20P(73) |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Circular Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

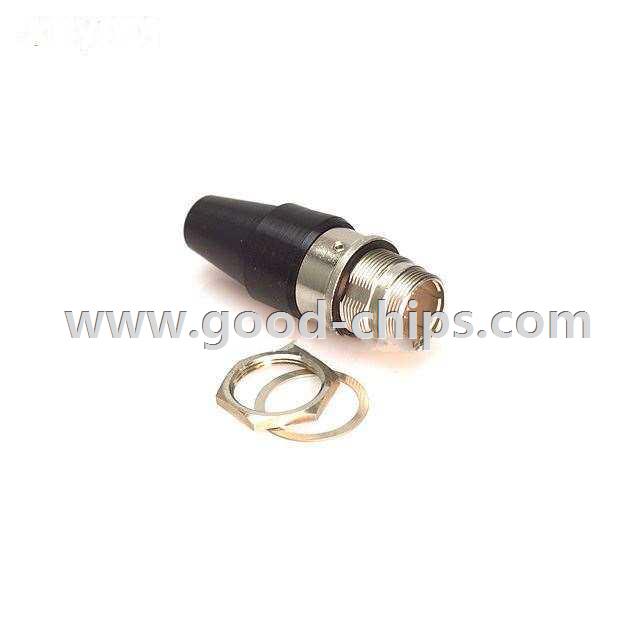

| Description: | 20 Position Circular Connector Jack, Male Pins Solder Cup Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HR22-12TJD-20P(73) Datasheet |
| Internal Part Number | 898-HR22-12TJD-20P(73) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Waterproof Connector | |
| Featured Product | HR22 Series Circular Connectors | |
| Online Catalog | HR22 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | HR22 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Jack, Male Pins | |
| Number of Positions | 20 | |
| Shell Size - Insert | 12 | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line); Panel Mount, Bulkhead - Front Side Nut | |
| Termination | Solder Cup | |
| Fastening Type | Threaded | |
| Orientation | - | |
| Ingress Protection | - | |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | |
| Contact Finish | Silver | |
| Features | - | |
| Contact Finish Thickness | - | |
| Current Rating | 2A | |
| Voltage - Rated | 100VAC | |
| Operating Temperature | -25°C ~ 85°C | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HR22-12TJD-20P(73) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HR22-12TJD-20P(73) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HR22-12TJD-20P(73) is new and unused, you can buy HR22-12TJD-20P(73) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HR22-12TJD-20P(73).
