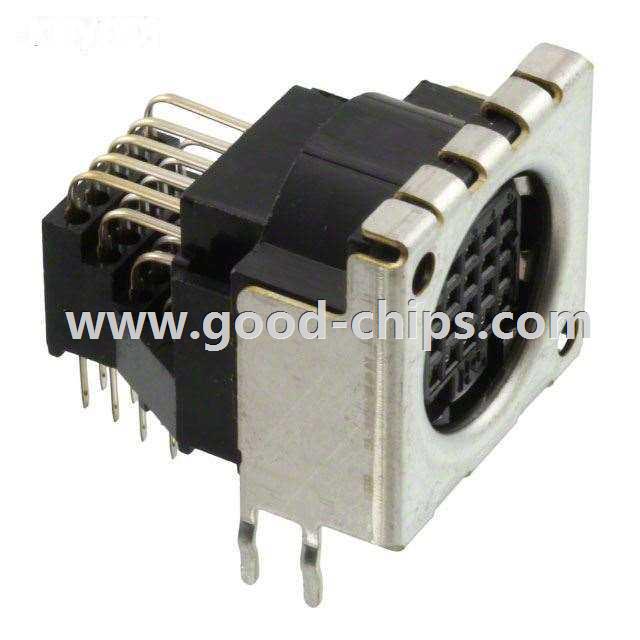

| Manufacturer Part Number: | HR12-14R-20SDL |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Circular Connectors |
| Available Quantity: | 9021 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Circular Connector Receptacle, Female Sockets Solder Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HR12-14R-20SDL Datasheet |
| Internal Part Number | 898-HR12-14R-20SDL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | HR12 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | HR12 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 20 | |
| Shell Size - Insert | 14 | |
| Shell Size, MIL | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Push-Pull | |
| Orientation | Keyed | |
| Ingress Protection | - | |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | |
| Contact Finish | Silver | |
| Features | Board Guide, Shielded | |
| Contact Finish Thickness | - | |
| Current Rating | 2A | |
| Voltage - Rated | 100VAC | |
| Operating Temperature | -15°C ~ 60°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HR12-14R-20SDL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HR12-14R-20SDL is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of HR12-14R-20SDL is new and unused, you can buy HR12-14R-20SDL Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HR12-14R-20SDL.
