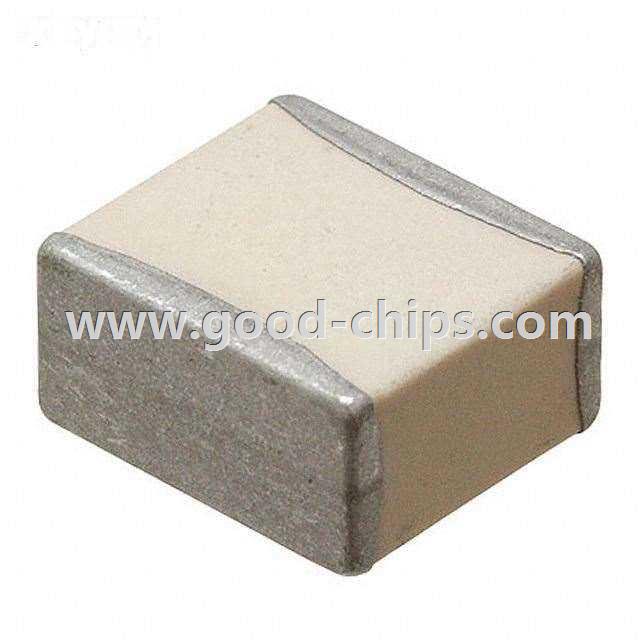

| Manufacturer Part Number: | HQCCWM3R3BAH6A |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.3pF 2500V (2.5kV) Ceramic Capacitor P90 2325 (5864 Metric) 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HQCCWM3R3BAH6A Datasheet |
| Internal Part Number | 898-HQCCWM3R3BAH6A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Hi-Q® Series | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | AVX Corporation | |
| Series | Hi-Q® | |
| Packaging | Tray - Waffle | |
| Part Status | Active | |
| Capacitance | 3.3pF | |
| Tolerance | ±0.1pF | |
| Voltage - Rated | 2500V (2.5kV) | |
| Temperature Coefficient | P90 | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | RF, Microwave, High Frequency | |
| Ratings | - | |
| Package / Case | 2325 (5864 Metric) | |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.145" (3.68mm) | |
| Lead Spacing | - | |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage | |
| Lead Style | - | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HQCCWM3R3BAH6A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HQCCWM3R3BAH6A is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of HQCCWM3R3BAH6A is new and unused, you can buy HQCCWM3R3BAH6A AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HQCCWM3R3BAH6A.
