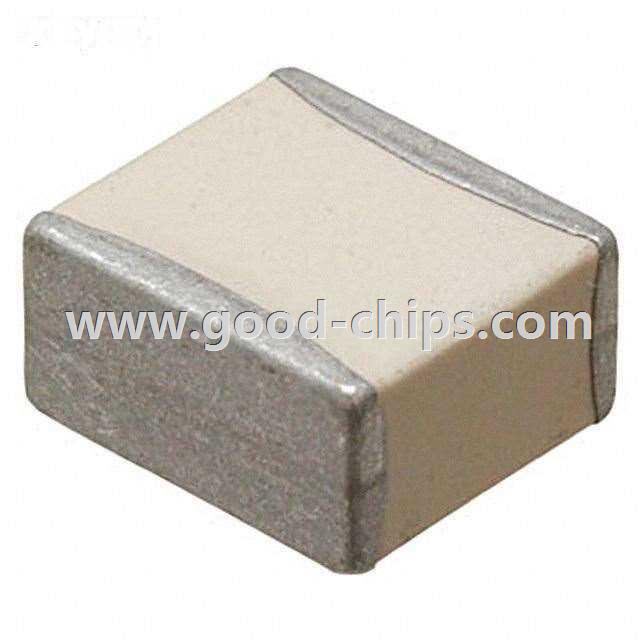

| Manufacturer Part Number: | HQCCSA102JAT9A |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Ceramic Capacitors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1000pF 1500V (1.5kV) Ceramic Capacitor C0G, NP0 2325 (5864 Metric) 0.230" L x 0.250" W (5.84mm x 6.35mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HQCCSA102JAT9A Datasheet |
| Internal Part Number | 898-HQCCSA102JAT9A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Capacitors | |
| Family | Ceramic Capacitors | |
| Manufacturer | AVX Corporation | |
| Series | Hi-Q® | |
| Packaging | Bulk | |
| Part Status | Discontinued | |
| Capacitance | 1000pF | |
| Tolerance | ±5% | |
| Voltage - Rated | 1500V (1.5kV) | |
| Temperature Coefficient | C0G, NP0 | |
| Mounting Type | Surface Mount, MLCC | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | RF, Microwave, High Frequency | |
| Ratings | - | |
| Package / Case | 2325 (5864 Metric) | |
| Size / Dimension | 0.230" L x 0.250" W (5.84mm x 6.35mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.165" (4.19mm) | |
| Lead Spacing | - | |
| Features | High Q, Low Loss, Ultra Low ESR, High Voltage | |
| Lead Style | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HQCCSA102JAT9A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HQCCSA102JAT9A is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of HQCCSA102JAT9A is new and unused, you can buy HQCCSA102JAT9A AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HQCCSA102JAT9A.
