| Manufacturer Part Number: | HN2S03T(TE85L) |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 2 Independent Schottky 20V 50mA Surface Mount 4-SMD, Flat Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HN2S03T(TE85L) Datasheet |
| Internal Part Number | 898-HN2S03T(TE85L) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Silicon Epitaxial Schottky Barrier Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | End of Life | |
| Diode Configuration | 2 Independent | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) (per Diode) | 50mA | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 50mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 500nA @ 20V | |
| Mounting Type | Surface Mount | |

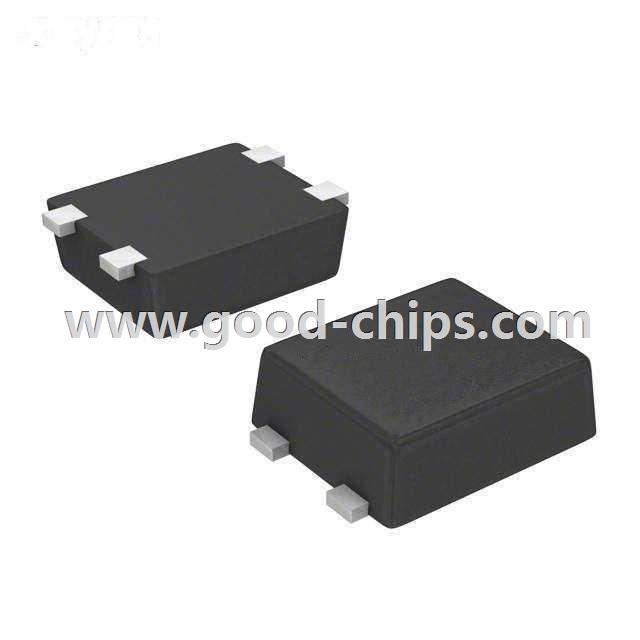

| Package / Case | 4-SMD, Flat Leads | |
| Supplier Device Package | TESQ | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HN2S03T(TE85L) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HN2S03T(TE85L) is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of HN2S03T(TE85L) is new and unused, you can buy HN2S03T(TE85L) Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HN2S03T(TE85L).
