Manufacturer Part Number: | HMC852LC3C |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Logic - Gates and Inverters - Multi-Function, Configurable |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AND/NAND/NOR/OR GATE Configurable 1 Circuit 4 Input 16-SMT (3x3) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HMC852LC3C Datasheet |
Internal Part Number | 898-HMC852LC3C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | HMC852 Models 01/Jun/2015 | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters - Multi-Function, Configurable | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Packaging | Cut Strip | |
Part Status | Obsolete | |
Logic Type | AND/NAND/NOR/OR GATE | |
Number of Circuits | 1 | |
Number of Inputs | 4 | |
Schmitt Trigger Input | No | |
Output Type | Differential, Single-Ended | |
Current - Output High, Low | - | |
Voltage - Supply | -3 V ~ -3.6 V | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

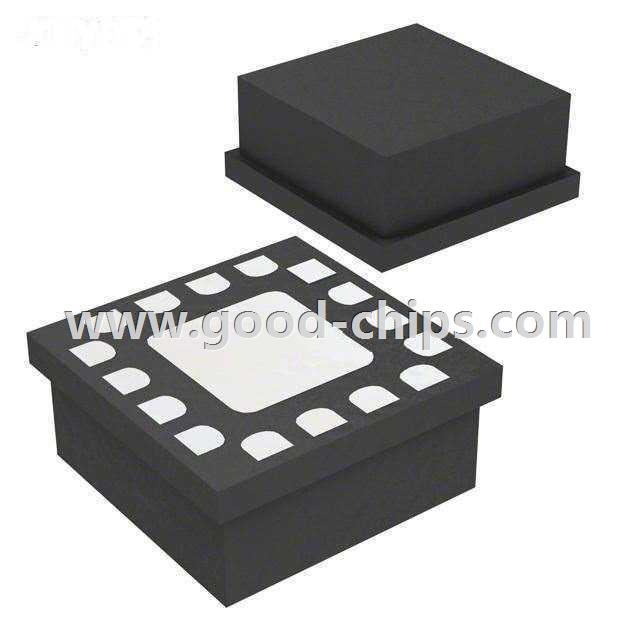

Package / Case | 16-LFQFN Exposed Pad | |
Supplier Device Package | 16-SMT (3x3) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HMC852LC3C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HMC852LC3C is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC852LC3C is new and unused, you can buy HMC852LC3C Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC852LC3C.
