| Manufacturer Part Number: | HMC711LC5TR-R5 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Misc ICs and Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF IC Upconverter Radar 17.7GHz ~ 23.6GHz 32-CSMT (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC711LC5TR-R5 Datasheet |
| Internal Part Number | 898-HMC711LC5TR-R5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 23/Feb/2015 Updated Revision A 27/Jul/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Misc ICs and Modules | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Function | Upconverter | |
| Frequency | 17.7GHz ~ 23.6GHz | |
| RF Type | Radar | |
| Secondary Attributes | - | |

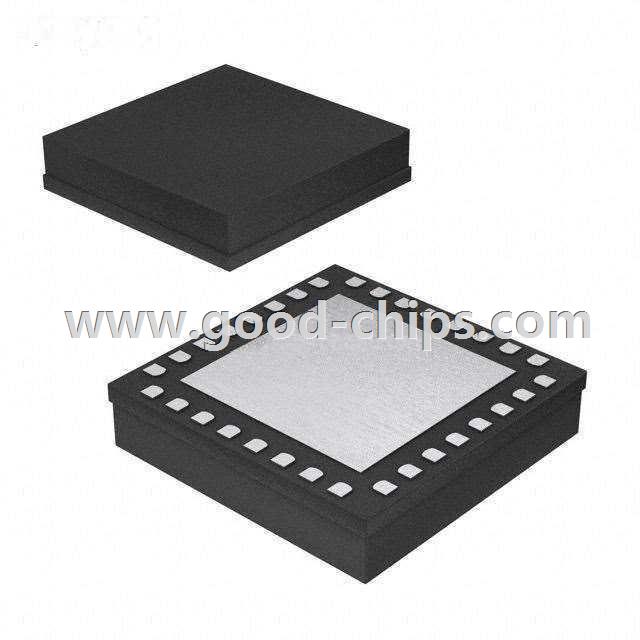

| Package / Case | 32-TFCQFN Exposed Pad | |
| Supplier Device Package | 32-CSMT (5x5) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC711LC5TR-R5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC711LC5TR-R5 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC711LC5TR-R5 is new and unused, you can buy HMC711LC5TR-R5 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC711LC5TR-R5.
