| Manufacturer Part Number: | HMC5843-DEMO |
|---|---|
| Manufacturer: | Honeywell Microelectronics & Precision Sensors |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | HMC5843 - Magnetic, Digital Compass Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC5843-DEMO Datasheet |
| Internal Part Number | 898-HMC5843-DEMO | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | 3-Axis Digital Compass IC HMC5843 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Honeywell Microelectronics & Precision Sensors | |
| Series | - | |
| Part Status | Obsolete | |
| Sensor Type | Magnetic, Digital Compass | |
| Sensing Range | ±4g | |
| Interface | I²C | |
| Sensitivity | 7 milligauss | |
| Voltage - Supply | 5V | |
| Embedded | No | |

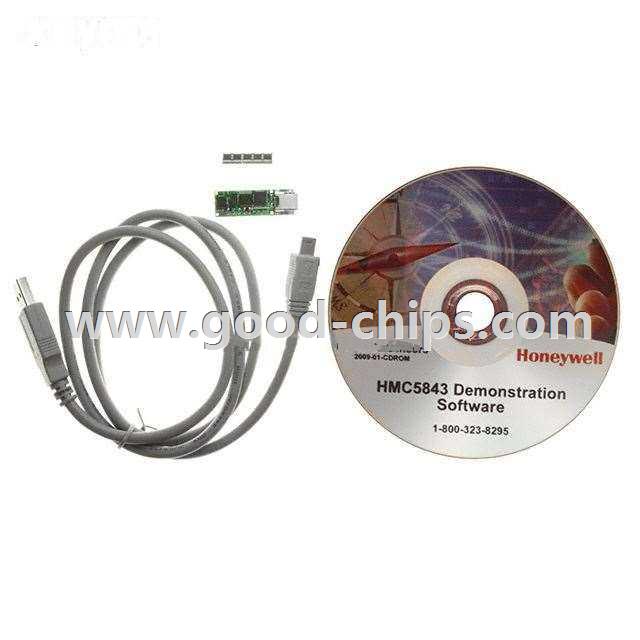

| Supplied Contents | Board, Cable, Samples | |
| Utilized IC / Part | HMC5843 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC5843-DEMO | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC5843-DEMO is in stock for immediate shipping now. We are the distributor of Honeywell Microelectronics & Precision Sensors all series components. The condition of HMC5843-DEMO is new and unused, you can buy HMC5843-DEMO Honeywell Microelectronics & Precision Sensors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC5843-DEMO.
