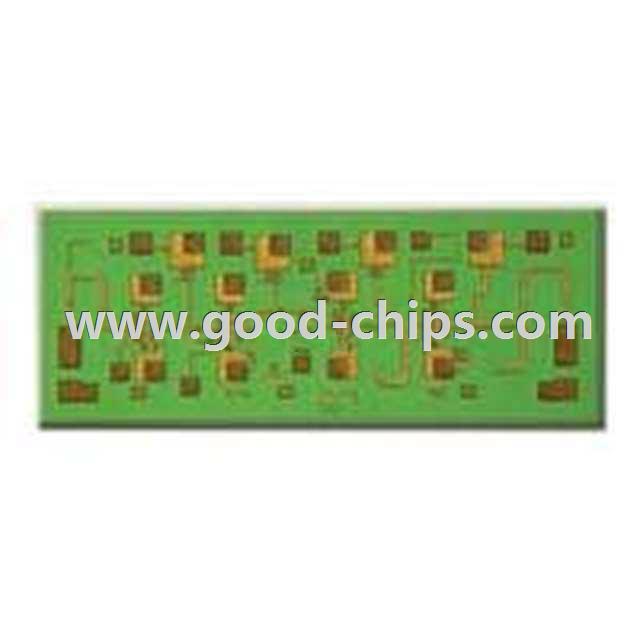

| Manufacturer Part Number: | HMC566 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Amplifiers |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Amplifier IC VSAT 29GHz ~ 36GHz Die |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC566 Datasheet |
| Internal Part Number | 898-HMC566 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Analog Devices/Hittite Microwave Corporation Amplifiers | |
| Category | RF/IF and RFID | |
| Family | RF Amplifiers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency | 29GHz ~ 36GHz | |
| P1dB | 12dBm | |
| Gain | 22dB | |
| Noise Figure | 2.8dB | |
| RF Type | VSAT | |
| Voltage - Supply | 3V | |
| Current - Supply | 80mA | |
| Test Frequency | 29GHz ~ 33GHz | |
| Package / Case | Die | |
| Supplier Device Package | Die | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC566 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC566 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC566 is new and unused, you can buy HMC566 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC566.
