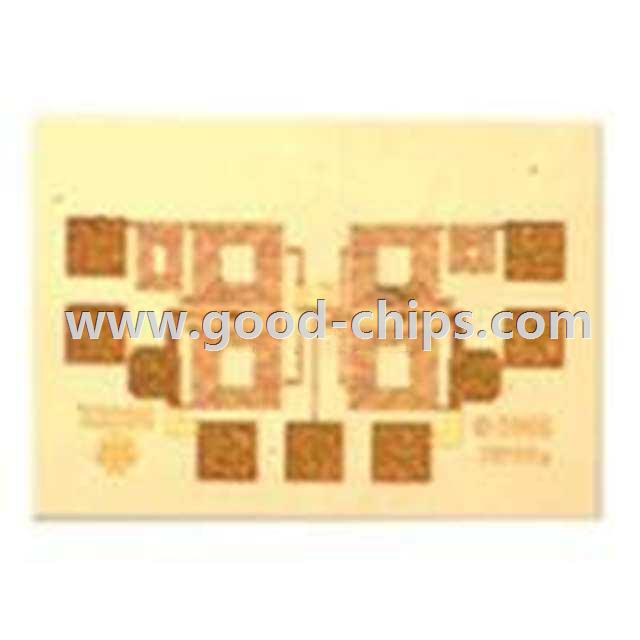

| Manufacturer Part Number: | HMC553 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Mixers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Mixer IC Radar Up/Down Converter 7GHz ~ 14GHz Die |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC553 Datasheet |
| Internal Part Number | 898-HMC553 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | RF/Microwave Dev EOL 3/Mar/2016 | |
| Category | RF/IF and RFID | |
| Family | RF Mixers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Last Time Buy | |
| RF Type | Radar | |
| Frequency | 7GHz ~ 14GHz | |
| Number of Mixers | 1 | |
| Gain | - | |
| Noise Figure | 8dB | |
| Secondary Attributes | Up/Down Converter | |
| Current - Supply | - | |
| Voltage - Supply | - | |
| Package / Case | Die | |
| Supplier Device Package | Die | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC553 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC553 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC553 is new and unused, you can buy HMC553 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC553.
