| Manufacturer Part Number: | HMC550ATR |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC WiMAX / WiBro SPST 6GHz 50 Ohm SOT-26 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC550ATR Datasheet |
| Internal Part Number | 898-HMC550ATR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | 0Hz | |
| Frequency - Upper | 6GHz | |
| Isolation @ Frequency | 12dB @ 6GHz (typ) | |
| Insertion Loss @ Frequency | 0.7dB @ 6GHz | |
| IIP3 | 52dBm (typ) | |
| Topology | Reflective | |
| Circuit | SPST | |
| P1dB | 32dBm | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 3.3V | |
| RF Type | WiMAX / WiBro | |

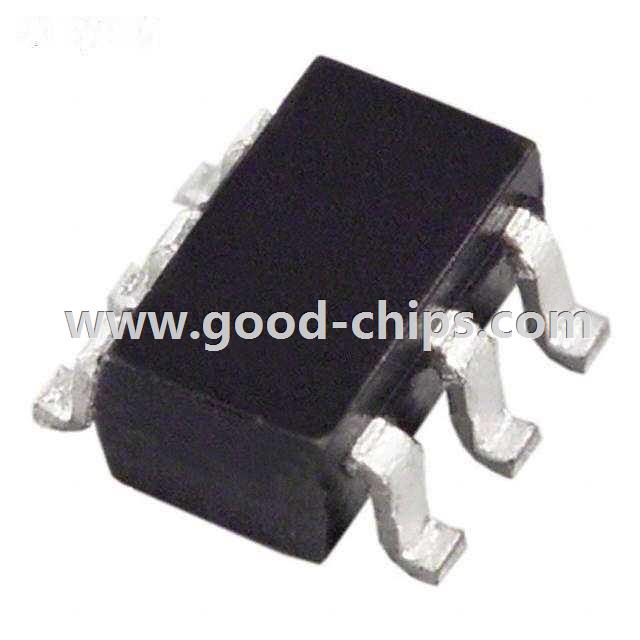

| Package / Case | SOT-23-6 | |
| Supplier Device Package | SOT-26 | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC550ATR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC550ATR is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC550ATR is new and unused, you can buy HMC550ATR Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC550ATR.
