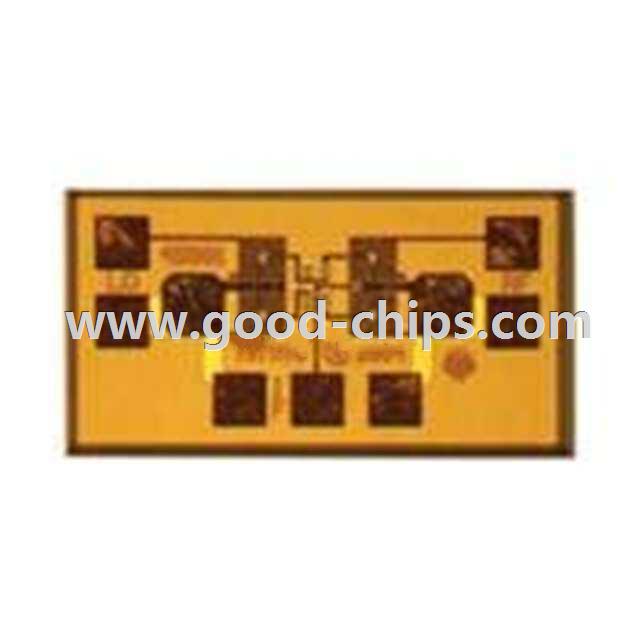

| Manufacturer Part Number: | HMC292 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Mixers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Mixer IC General Purpose Up/Down Converter 16GHz ~ 30GHz Die |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC292 Datasheet |
| Internal Part Number | 898-HMC292 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | RF/Microwave Dev EOL 3/Mar/2016 | |
| Category | RF/IF and RFID | |
| Family | RF Mixers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Last Time Buy | |
| RF Type | General Purpose | |
| Frequency | 16GHz ~ 30GHz | |
| Number of Mixers | 1 | |
| Gain | - | |
| Noise Figure | 9.5dB | |
| Secondary Attributes | Up/Down Converter | |
| Current - Supply | - | |
| Voltage - Supply | - | |
| Package / Case | Die | |
| Supplier Device Package | Die | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC292 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC292 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC292 is new and unused, you can buy HMC292 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC292.
