| Manufacturer Part Number: | HMC245AQS16ETR |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Switches |
| Available Quantity: | 9510 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC CATV SP4T 3.5GHz 50 Ohm 16-QSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC245AQS16ETR Datasheet |
| Internal Part Number | 898-HMC245AQS16ETR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | HMC245AQS16E | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | 0Hz | |
| Frequency - Upper | 3.5GHz | |
| Isolation @ Frequency | 36dB @ 2.5GHz (typ) | |
| Insertion Loss @ Frequency | 0.8dB @ 2.5GHz | |
| IIP3 | 48dBm (typ) | |
| Topology | Absorptive | |
| Circuit | SP4T | |
| P1dB | 29dBm | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 5V | |
| RF Type | CATV | |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) | |

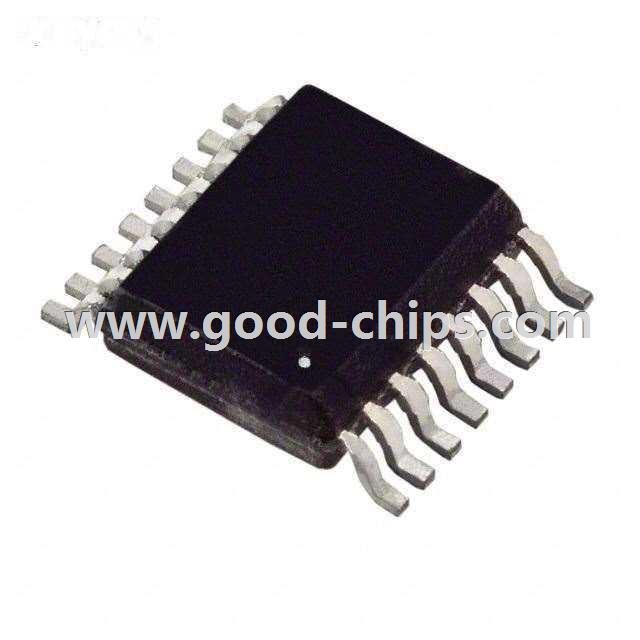

| Supplier Device Package | 16-QSOP | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC245AQS16ETR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC245AQS16ETR is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC245AQS16ETR is new and unused, you can buy HMC245AQS16ETR Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC245AQS16ETR.
