| Manufacturer Part Number: | HMC232G7 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC VSAT SPDT 6GHz 50 Ohm 7-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC232G7 Datasheet |
| Internal Part Number | 898-HMC232G7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | 24GHz Multi-channel Radar and Sensor Solution | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Cut Strip | |
| Part Status | Obsolete | |
| Frequency - Lower | 0Hz | |
| Frequency - Upper | 6GHz | |
| Isolation @ Frequency | 46dB @ 4GHz (typ) | |
| Insertion Loss @ Frequency | 1.4dB @ 4GHz | |
| IIP3 | 49dBm (typ) | |
| Topology | Absorptive | |
| Circuit | SPDT | |
| P1dB | 27dBm | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | - | |
| RF Type | VSAT | |

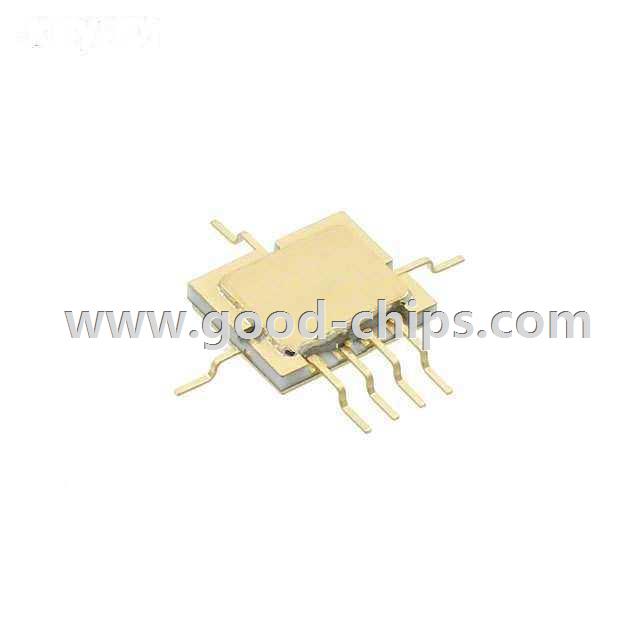

| Package / Case | 7-SMD, Gull Wing | |
| Supplier Device Package | 7-SMD | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC232G7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC232G7 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC232G7 is new and unused, you can buy HMC232G7 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC232G7.
