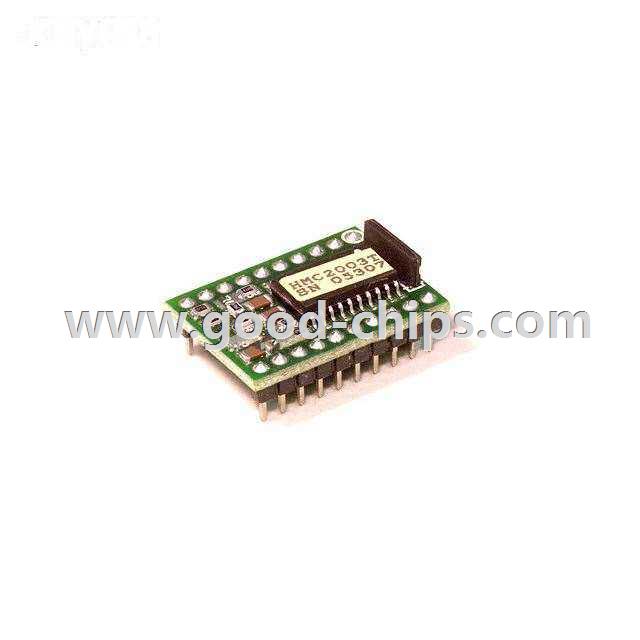

| Manufacturer Part Number: | HMC2003 |
|---|---|
| Manufacturer: | Honeywell Microelectronics & Precision Sensors |
| Product Category: | Magnetic Sensors - Compass, Magnetic Field (Modules) |
| Available Quantity: | 9077 Pieces |
| Unit Price: | Quote by Email |
| Description: | ±2 Gauss Compass X, Y, Z 40 µGauss 20-DIP Module |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC2003 Datasheet |
| Internal Part Number | 898-HMC2003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Sensors | |
| Online Catalog | HMC2003 | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Compass, Magnetic Field (Modules) | |
| Manufacturer | Honeywell Microelectronics & Precision Sensors | |
| Series | HMC | |
| Part Status | Active | |
| Axis | X, Y, Z | |
| Measuring Range | ±2 Gauss | |
| For Measuring | Strength, Direction of Magnetic Field | |
| Resolution | 40 µGauss | |
| Type | Digital Magnetometer | |
| Package / Case | 20-DIP Module | |
| Interface | Analog | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC2003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC2003 is in stock for immediate shipping now. We are the distributor of Honeywell Microelectronics & Precision Sensors all series components. The condition of HMC2003 is new and unused, you can buy HMC2003 Honeywell Microelectronics & Precision Sensors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC2003.
