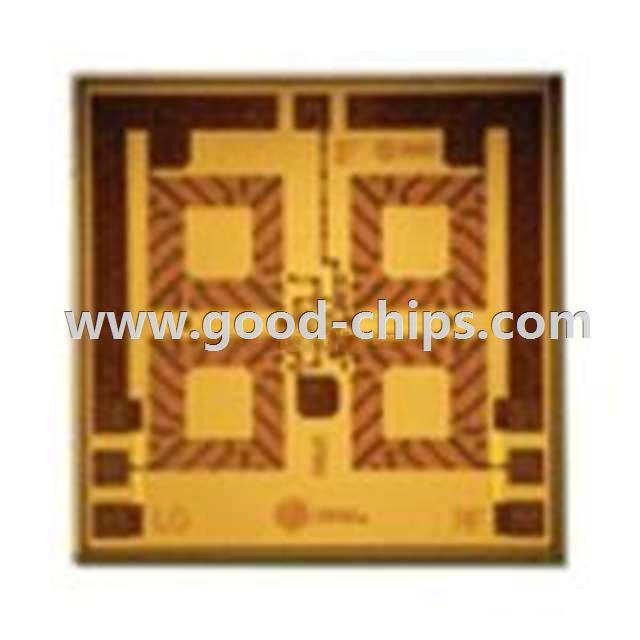

HMC135

HMC135
Manufacturer Part Number:HMC135
Manufacturer:
Product Category:RF Modulators
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:RF Modulator IC 1.8GHz ~ 5.2GHz Die
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: HMC135 Datasheet
HMC135´s Parameters
Internal Part Number898-HMC135
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Design ResourcesIoT Product Selector
PCN Obsolescence/ EOLMultiple Devices 23/Feb/2015
Updated Revision A 27/Jul/2015
CategoryRF/IF and RFID
FamilyRF Modulators
ManufacturerAnalog Devices Inc.
Series-
PackagingBulk
Part StatusObsolete
FunctionModulator
LO Frequency-
RF Frequency1.8GHz ~ 5.2GHz
P1dB8dBm
Noise Floor*
Output Power-
Current - Supply5mA
Voltage - Supply-
Test Frequency1.8GHz ~ 5.2GHz
Package / CaseDie
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement PartHMC135
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

HMC135 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC135 is new and unused, you can buy HMC135 Analog Devices Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for HMC135.
