| Manufacturer Part Number: | HMC1197LP7FETR |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Modulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Modulator IC 100MHz ~ 4GHz 48-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC1197LP7FETR Datasheet |
| Internal Part Number | 898-HMC1197LP7FETR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Modulators | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | - | |
| LO Frequency | 50MHz ~ 4.1GHz | |
| RF Frequency | 100MHz ~ 4GHz | |
| P1dB | 9.5dBm | |
| Noise Floor | -156.6dBm/Hz | |
| Output Power | -3dBm | |
| Current - Supply | 320mA | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Test Frequency | 4GHz | |

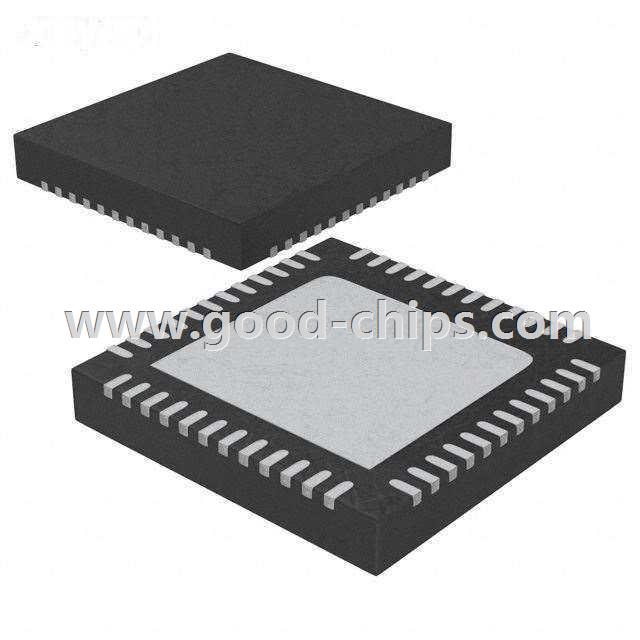

| Package / Case | 48-VFQFN Exposed Pad | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC1197LP7FETR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC1197LP7FETR is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC1197LP7FETR is new and unused, you can buy HMC1197LP7FETR Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC1197LP7FETR.
