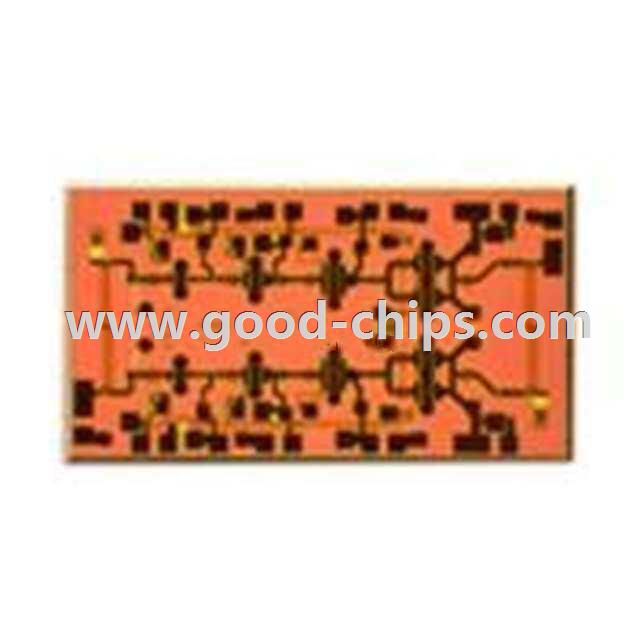

| Manufacturer Part Number: | HMC1014 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Amplifiers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Amplifier IC VSAT 33.5GHz ~ 46.5GHz Die |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC1014 Datasheet |
| Internal Part Number | 898-HMC1014 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 23/Feb/2015 Updated Revision A 27/Jul/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Amplifiers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Frequency | 33.5GHz ~ 46.5GHz | |
| P1dB | 24.5dBm | |
| Gain | 21dB | |
| Noise Figure | - | |
| RF Type | VSAT | |
| Voltage - Supply | 6V | |
| Current - Supply | 500mA | |
| Test Frequency | 33.5GHz ~ 43GHz | |
| Package / Case | Die | |
| Supplier Device Package | Die | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC1014 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC1014 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC1014 is new and unused, you can buy HMC1014 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC1014.
