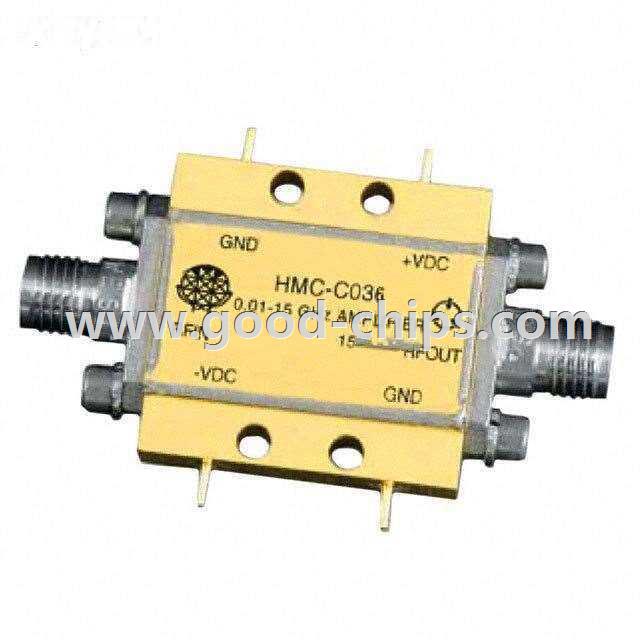

| Manufacturer Part Number: | HMC-C036 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | RF Amplifiers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Amplifier IC VSAT 10MHz ~ 15GHz Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HMC-C036 Datasheet |
| Internal Part Number | 898-HMC-C036 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Amplifiers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency | 10MHz ~ 15GHz | |
| P1dB | 28dBm | |
| Gain | 12.5dB | |
| Noise Figure | 7dB | |
| RF Type | VSAT | |
| Voltage - Supply | 11 V ~ 16 V | |
| Current - Supply | 360mA | |
| Test Frequency | - | |
| Package / Case | Module, SMA Connectors | |
| Supplier Device Package | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HMC-C036 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HMC-C036 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC-C036 is new and unused, you can buy HMC-C036 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC-C036.
