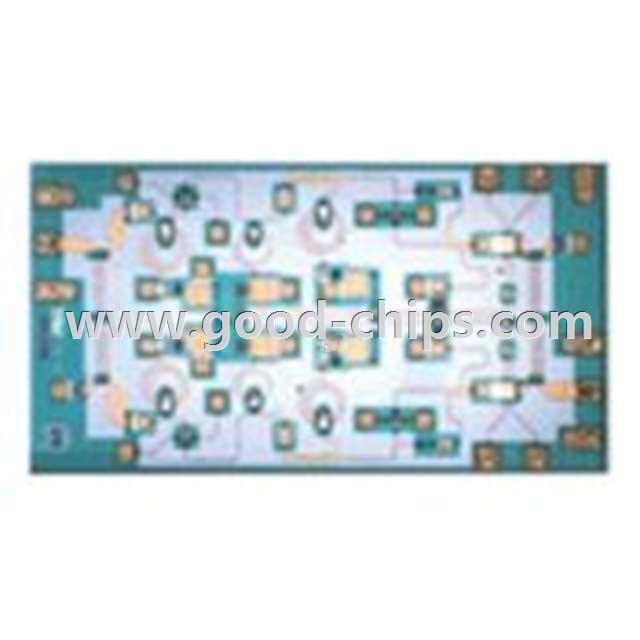

Manufacturer Part Number: | HMC-ALH140-SX |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | RF Amplifiers |
Available Quantity: | 9020 Pieces |
Unit Price: | Quote by Email |
Description: | RF Amplifier IC VSAT, DBS 24GHz ~ 40GHz Die |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HMC-ALH140-SX Datasheet |
Internal Part Number | 898-HMC-ALH140-SX | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Online Catalog | Analog Devices/Hittite Microwave Corporation Amplifiers | |
Category | RF/IF and RFID | |
Family | RF Amplifiers | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Frequency | 24GHz ~ 40GHz | |
P1dB | 15dBm | |
Gain | 11.5dB | |
Noise Figure | 4dB | |
RF Type | VSAT, DBS | |
Voltage - Supply | 4V | |
Current - Supply | 60mA | |
Test Frequency | 24GHz ~ 40GHz | |
Package / Case | Die | |
Supplier Device Package | Die | |
Standard Package | 2 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HMC-ALH140-SX | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HMC-ALH140-SX is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of HMC-ALH140-SX is new and unused, you can buy HMC-ALH140-SX Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HMC-ALH140-SX.
