Manufacturer Part Number: | HM2R01PA5100N9LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Backplane Connectors - Hard Metric, Standard |
Available Quantity: | 9672 Pieces |
Unit Price: | Quote by Email |

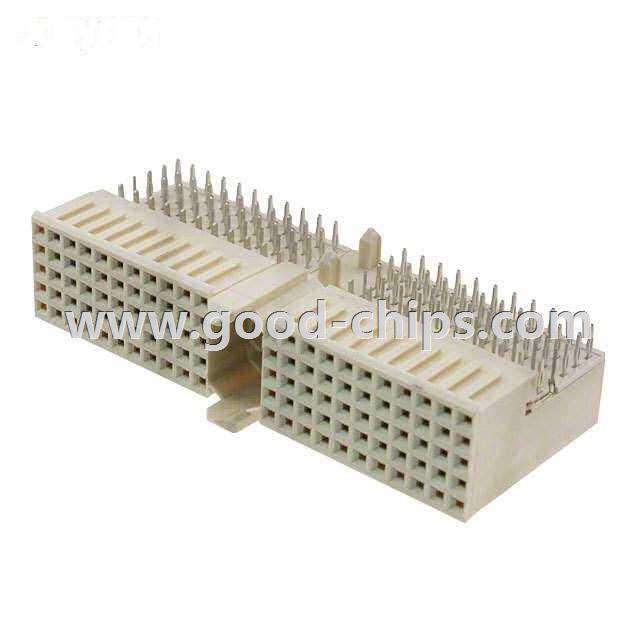

Description: | 110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HM2R01PA5100N9LF Datasheet |
Internal Part Number | 898-HM2R01PA5100N9LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Millipacs Receptacle series/Plating 28/Jul/2009 HM2R Resin 19/Oct/2015 | |
PCN Assembly/Origin | Millipacs Series 21/Aug/2012 | |
PCN Other | MPACS Receptacles Material 02/Jul/2014 | |
Online Catalog | Millipacs® Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Hard Metric, Standard | |
Manufacturer | Amphenol FCI | |
Series | Millipacs® | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle, Female Sockets | |
Connector Style | A 22 | |
Number of Positions | 110 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 5 | |
Mounting Type | Through Hole, Right Angle | |
Termination | Press-Fit | |
Connector Usage | CompactPCI | |
Contact Finish | Gold, GXT™ | |
Contact Finish Thickness | Flash | |
Current Rating | 1.5A | |
Voltage Rating | 500V | |
Operating Temperature | -55°C ~ 125°C | |
Features | Board Guide | |
Standard Package | 36 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HM2R01PA5100N9LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HM2R01PA5100N9LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of HM2R01PA5100N9LF is new and unused, you can buy HM2R01PA5100N9LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HM2R01PA5100N9LF.
