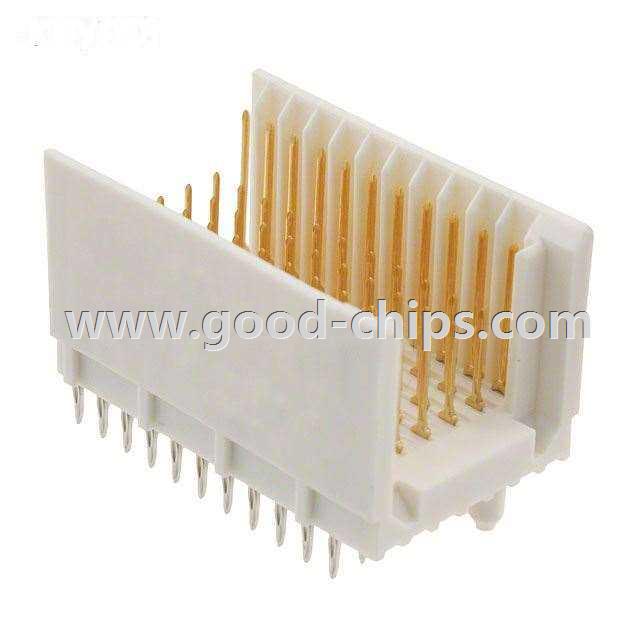

| Manufacturer Part Number: | HM2P09PD5111N9LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Backplane Connectors - Hard Metric, Standard |
| Available Quantity: | 10005 Pieces |
| Unit Price: | Quote by Email |
| Description: | 77 (55 + 22 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HM2P09PD5111N9LF Datasheet |
| Internal Part Number | 898-HM2P09PD5111N9LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | HM2P, HM2J Plating 20/Oct/2011 HM2 Plating 20/Sept/2012 HM2 Series Copper Alloy 22/Jun/2013 | |
| PCN Packaging | Millipacs UL/CSA marking 01/July/2009 Millipacs Devices 16/Dec/2010 | |
| Online Catalog | Millipacs® Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Hard Metric, Standard | |
| Manufacturer | Amphenol FCI | |
| Series | Millipacs® | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Header, Male Pins | |
| Connector Style | C 11 | |
| Number of Positions | 77 (55 + 22 Ground) | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 5 + 2 | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Connector Usage | CompactPCI | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Current Rating | 1.5A | |
| Voltage Rating | 750V | |
| Operating Temperature | -55°C ~ 125°C | |
| Features | Board Guide | |
| Standard Package | 96 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HM2P09PD5111N9LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HM2P09PD5111N9LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of HM2P09PD5111N9LF is new and unused, you can buy HM2P09PD5111N9LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HM2P09PD5111N9LF.
