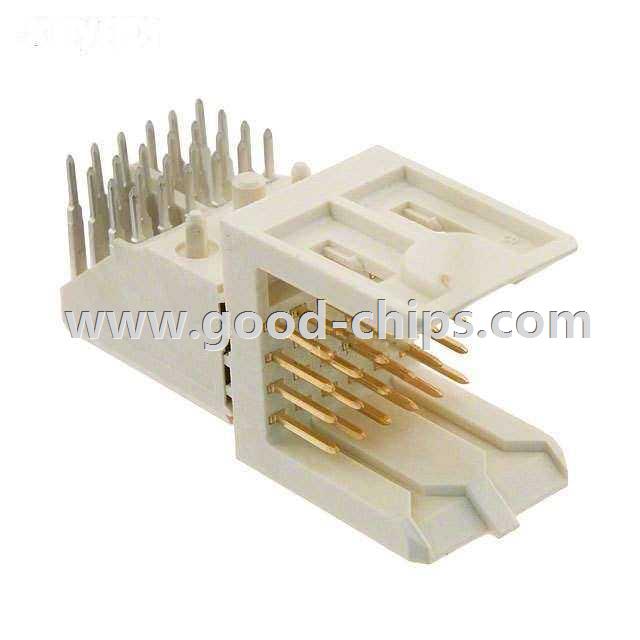

| Manufacturer Part Number: | HM1L41AAP000H6PLF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9178 Pieces |
| Unit Price: | Quote by Email |
| Description: | METRAL HDR R/A 4X6 CTS STB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HM1L41AAP000H6PLF Datasheet |
| Internal Part Number | 898-HM1L41AAP000H6PLF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | New Alloy 02/Aug/2013 | |
| PCN Assembly/Origin | Multiple Devices Location Change 29/Jan/2015 | |
| PCN Other | Multiple Devices Material 25/Nov/2014 Multiple Devices Material Reversal 22/Apr/2015 | |
| Online Catalog | Metral® Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | Amphenol FCI | |
| Series | Metral® | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Header, Male Pins | |
| Connector Style | - | |
| Number of Positions | 24 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 4 | |
| Number of Columns | - | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Termination | Solder | |
| Contact Layout, Typical | - | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Natural | |
| Current Rating | 1A | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Standard Package | 120 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HM1L41AAP000H6PLF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HM1L41AAP000H6PLF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of HM1L41AAP000H6PLF is new and unused, you can buy HM1L41AAP000H6PLF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HM1L41AAP000H6PLF.
